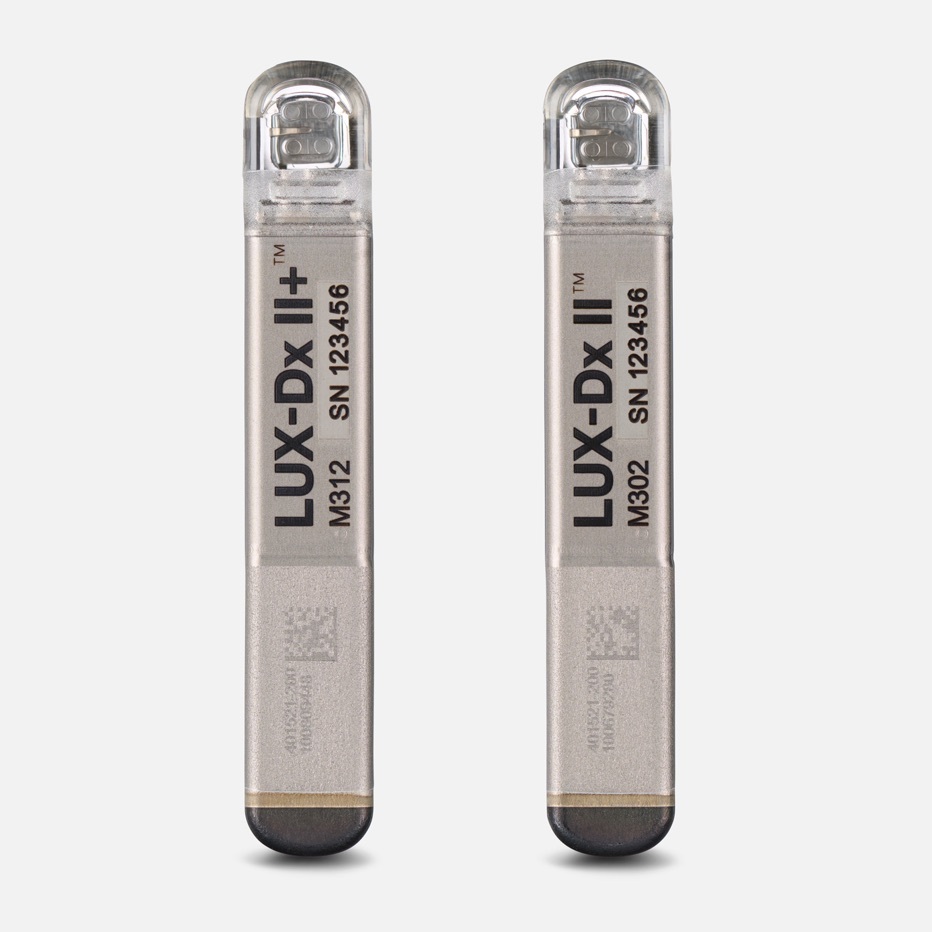

LUX-Dx II/II+™
ICM Systems¹
LUX-Dx II/II+ ICM System provides clear signal quality, meaningful alerts, efficient workflows, and seamless patient connectivity.
Key Resources
Product details
Overview
The LUX-Dx II/II+ ICM System builds upon the advanced dual-stage algorithm and unparalleled signal quality—while adding enhanced detection algorithms and monitoring capabilities to help reduce false alerts, encourage patient compliance, and prioritize clinically actionable events.
Discover the LUX-Dx II/II+
Powered by myLUXTM, an intuitive downloadable app for your patients, and the RhythmCARETM support hub2, LUX-Dx II/II+ ICMs are built for simplicity at every step along the patient journey.
Technical specifications
| Parameters | Value |
|---|---|
| Volume | 1.2 cm3 |
| Mass | 3 g |
| Dimensions W X H X D | 7.2 mm x 44.8 mm x 4.0 mm |
| Surface Area of Can Electrode | 75.3 mm2 |
| Surface Area of Header Electrode | 10.2 mm2 |
| Battery Longevity | 3 years* |
*3 years projected longevity, under the following usage scenarios:
- Average of 1 auto-detected event per day
- Average of 1 patient-initiated event per month
- Less than or equal to 6 months shelf life between device manufacture and insertion
- PVC Burden disabled
Notes:
- At the maximum shelf-storage time of 18 months, longevity is reduced by approximately 4 months
Download LUX-Dx II ICM product specs
Download LUX-Dx II+ ICM product specs
Ordering Information
| Description | Model Number |
|---|---|

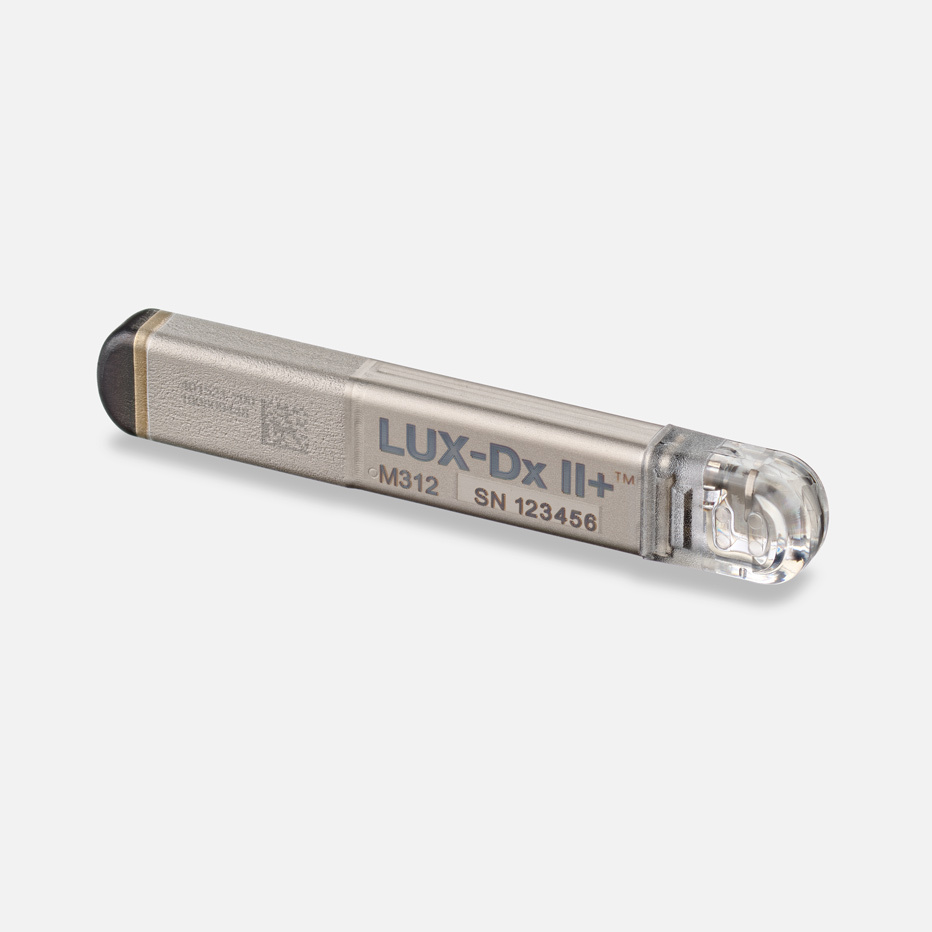

| LUX-Dx™ II+ Insertable Cardiac Monitor | M312 |
| LUX-Dx™ II Insertable Cardiac Monitor | M302 |
| myLUX™ Patient Kit | 6385 |
| LUX-Dx Clinic Assistant Kit with Mobile Device | 6256 |

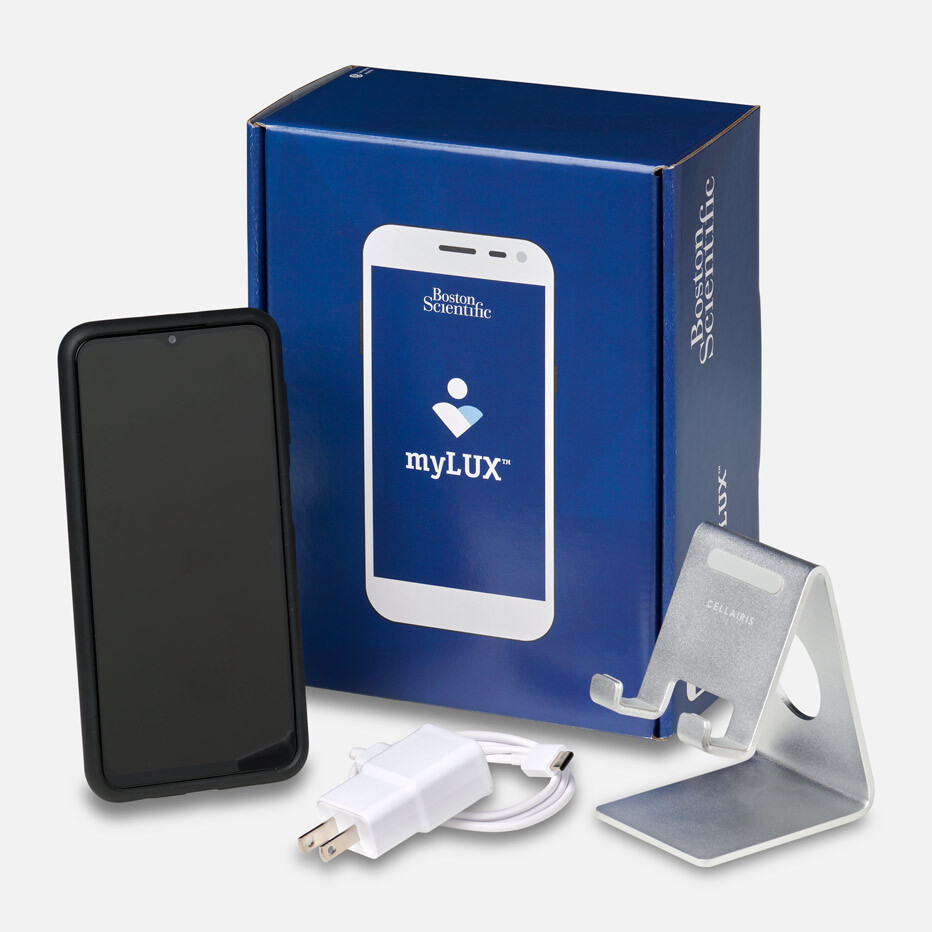

| myLUX™ Mobile Device | 7259 |
| Magnet** | 6386 |
