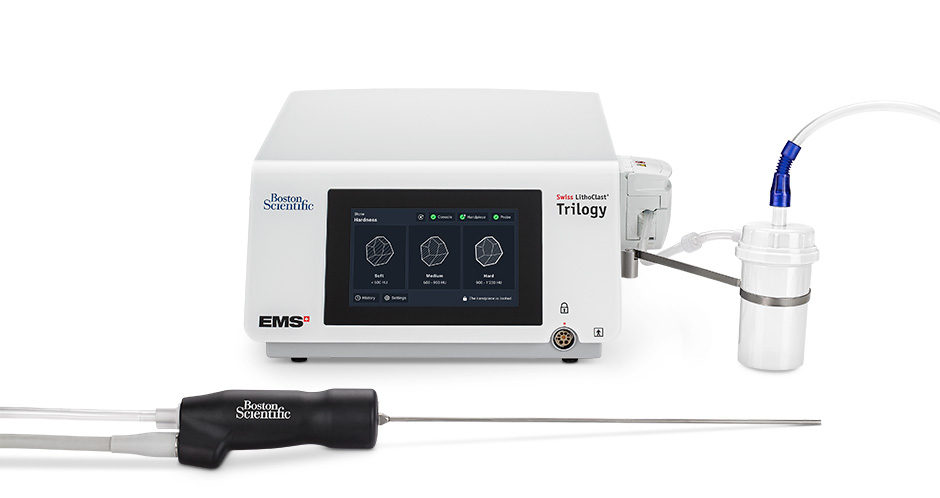

Swiss LithoClast® Trilogy Max
Lithotripter
Designed to deliver improved ergonomics without compromising performance, the Swiss LithoClast Trilogy Max Lithotripter features the enhancements physicians have asked for – a smaller handpiece profile, improved software and interface, and a wider, wireless foot pedal as compared to Swiss LithoClast Trilogy Lithotripter, its predecessor1.
The dual-energy Trilogy Lithotripter is designed to deliver controlled ultrasonic and ballistic energy concurrently or independently with simultaneous suction through a single probe.
Key Resources
Ordering Information

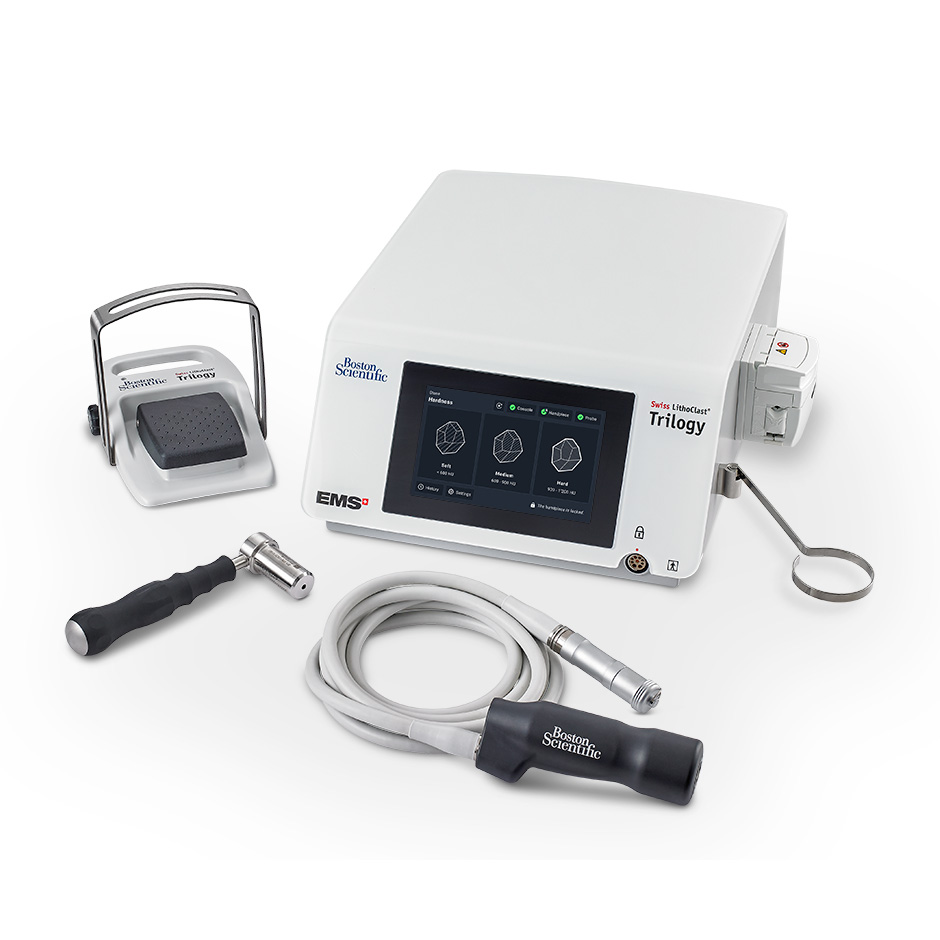

Order Number | Included In Trilogy Max System Kit | Description |
M006840162K0 | Yes | Swiss Lithoclast Trilogy Max System Kit (Switzerland)
|
M006840182K0 |
Yes | Swiss Lithoclast Trilogy Max System Kit System Kit (Europe) |
M006840172K0 | Yes | Swiss Lithoclast Trilogy Max System Kit System Kit (UK) |
M0068402010 | Yes | Swiss LithoClast Trilogy Console |
M0068402130 | Yes | Swiss LithoClast Trilogy Max Handpiece Kit (Reusable Torque Wrench included in Handpiece Kit) |
M0068402050 | Yes | Swiss LithoClast Trilogy Foot Switch |
M0068403590 | Yes | Swiss LithoClast Trilogy Reusable Torque Wrench |
M0068401810 | Yes | Stone Catcher Holder |
M0068401800 | Yes | HDMI-DVI Cable (10m) |
M0068401820 | Yes | Filling Bottle |
M0068402830 | Yes | Bottle of Demineralized Water (2.5l) |
M0068401840 | Yes | Power Cord (Europe - 6m) |
M0068401710 | Yes | Power Cord (Switzerland - 6m) |
M0068401720 | Yes | Power Cord (UK - 6m) |
M0068401870 | Yes | TRILOGY SYSTEM IFU (EN FR IT DE) |
M0068401880 | Yes | TRILOGY SYSTEM IFU (EN NO DK NL) |
M0068401890 | Yes | Quick Guide |
M0068401620 | Yes | Cleaning Rod for Trilogy Probes (3.4mm and 3.9mm) |
M0068401610 | No | Cleaning Rod for Trilogy/Trilogy Max Handpiece |
M0068401630 | No | Cleaning Rod for Trilogy Probes (1.9mm) |
M0068401790 | No | Trilogy/Trilogy Max Handpiece Suction Connector |
M0068401640 | No | Steri Holder Trilogy |
M0068401760 | No | Swiss Lithoclast Trilogy Cart |
M0068402150 | No | Swiss LithoClast Trilogy Max Wireless Foot Switch Kit |
Ordering Information
Order Number | Included in Trilogy Max System Kit | Description |
M0068402981 | No | Stone Catcher for Trilogy (Bx5) |
M0068402061 | No | Double Suction Bags Set (Bx5) |
M0068402071 | No | Suction Bag 5l (Bx10) |
Swiss LithoClast Trilogy/Trilogy Max Single-Use Probe Kits
Single-use probe kits include a probe and stone catcher
Order Number | Description | Color code |
M0068403550 | 3.9mm x 440mm Trilogy Probe Kit | Blue |
M0068403540 | 3.9mm x 350mm Trilogy Probe Kit | Blue |
M0068403530 | 3.4mm x 445mm Trilogy Probe Kit | Green |
M0068403520 | 3.4mm x 340mm Trilogy Probe Kit | Green |
M0068403510 | 1.9mm x 341mm Trilogy Probe Kit | Yellow |
M0068403500 | 1.5mm x 440mm Trilogy Probe Kit | Orange |
M0068403490 | 1.1mm x 625mm Trilogy Probe Kit | Red |
M0068403480 | 1.1mm x 520mm Trilogy Probe Kit | Red |
M0068403470 | 1.1mm x 425mm Trilogy Probe Kit | Red |
