WATCHMAN FXD Curve™

Access System

WATCHMAN FXD CURVE™ ACCESS SYSTEM is designed for the WATCHMAN FLX™ LAAC Device, bringing smoother deployment and successful placement to the delivery of the most studied and implanted LAAC device in the world.

Key Resources

New Curve Shape Designs

Single and Double Curve shape designs simplify sheath selection and enhance the ability to reach the expanded range of anatomies treated with the WATCHMAN FLX LAAC device.

Enhanced Outer Diameter

A 15F outer diameter provides equivalent kink performance to WATCHMAN TruSeal and is still compatible to a 16F venous introducer.

Optimized Braiding

Updated braiding along the sheath allows for 3x better torque transmission for greater control and more predictable access into the LAA.

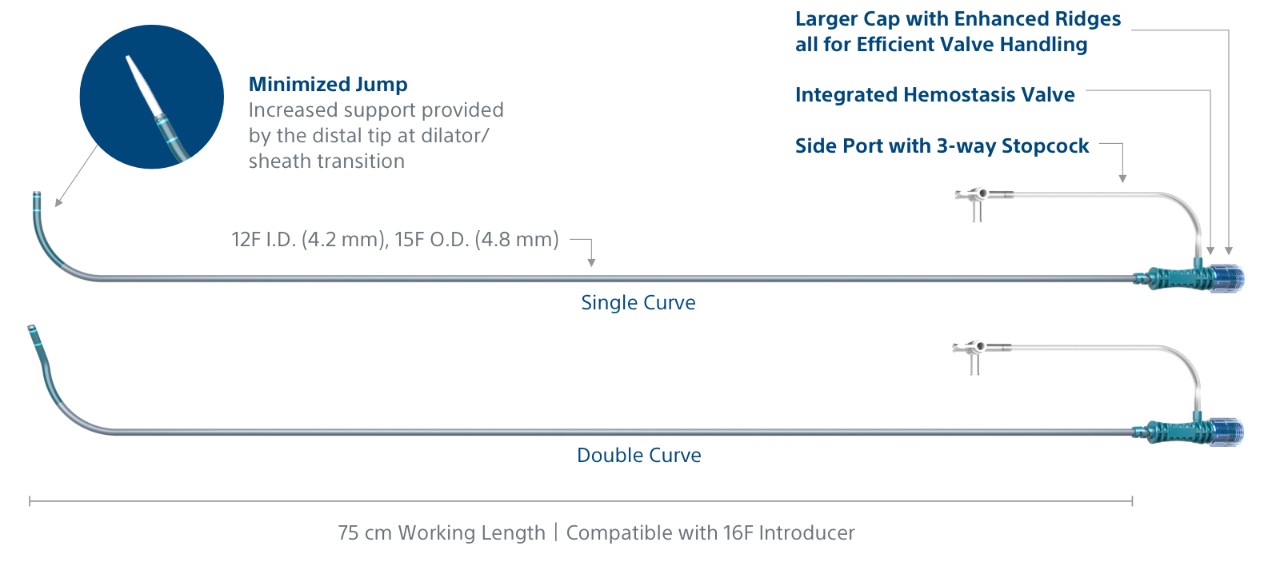

WATCHMAN FXD Curve Specifications





WATCHMAN FXD Curve Band

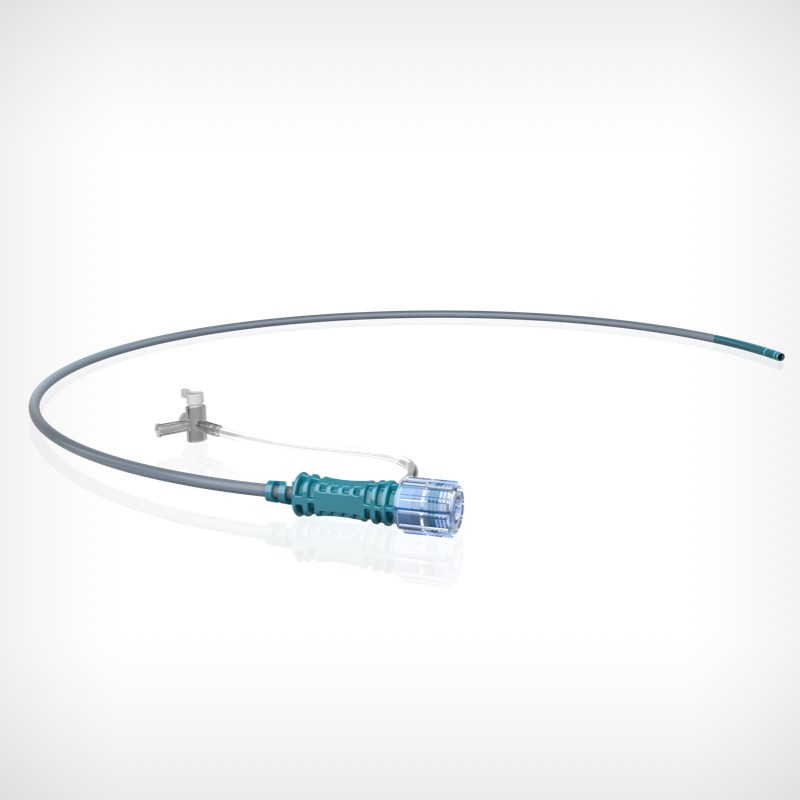

WATCHMAN FXD Curve™ Access System

WATCHMAN FXD Curve Access System WATCHMAN FXD Curve Access Sheath and Dilator
Inside Diameter 12F
Outside Diameter 15F
Recommended Guidewire 0.035 in (0.89 mm)
Sheath Material Braided Pebax® with PTFE liner and platinum/iridium marker band
Hub Material Pebax® with polycarbonate cap
Dilator High density polyethylene (HDPE)/low density polyethylene (LDPE) 50:50 blend
Use Single Use
Sterilization Ethylene Oxide Gas
