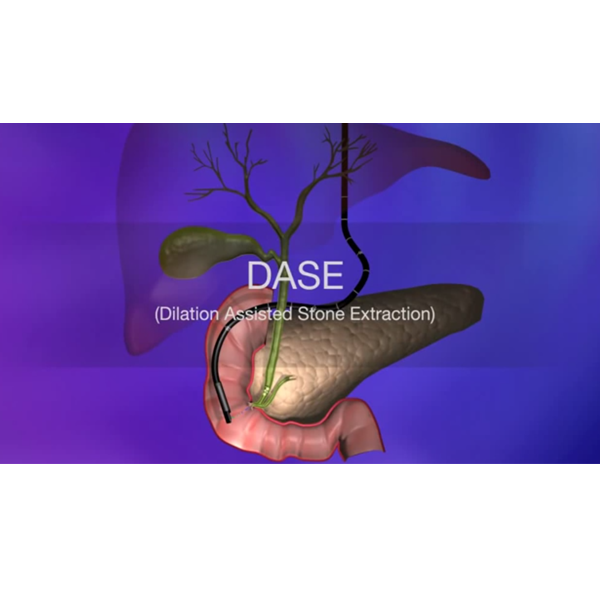

Dilation Assisted Stone Extraction (DASE)

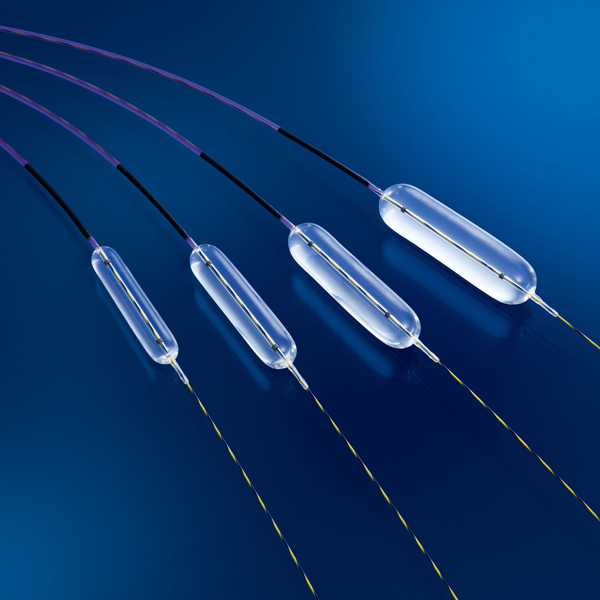

The DASE procedure using the CRE™ Wireguided Balloon for endoscopic dilatation of the Sphincter of Oddi with or without prior sphincterotomy helps facilitate removal of bile duct stones.
Key Resources
Explore
Ordering Information
| Order Number | Balloon Inflated O.D. (mm) | Balloon Inflated O.D. (Fr) | Balloon Length (cm) | Inflation Pressure (ATM) | Inflation Pressure (kPa) | Minimum Working Channel (mm) | Catheter Size (Fr) | Working Length (cm) | Packaging |
|---|---|---|---|---|---|---|---|---|---|
| M00558600 | 6-7-8 | 18-21-24 | 5.5 | 3-6-10 | 304-608-1013 | 2.8 / 3.2* / 3.2 (B1) | 7.5 | 180 | Each |
| M00558610 | 8-9-10 | 24-27-30 | 5.5 | 3-5.5-9 | 304-557-912 | 2.8 / 3.2* / 3.2 (B1) | 7.5 | 180 | Each |
| M00558620 | 10-11-12 | 30-33-36 | 5.5 | 3-5-8 | 304-507-811 | 2.8 / 3.2* / 3.2 (B1) | 7.5 | 180 | Each |
| M00558630 | 12-13.5-15 | 36-40.5-45 | 5.5 | 3-4.5-8 | 304-456-811 | 2.8 / 3.2* / 3.2 (B1) | 7.5 | 180 | Each |
| M00558640 | 15-16.5-18 | 45-49.5-54 | 5.5 | 3-4.5-7 | 304-456-709 | 2.8 / 3.2*/ 3.7 / 4.2 (B2) | 7.5 | 180 | Each |
| M00558650** | 18-19-20 | 54-57-60 | 5.5 | 3-4.5-6 | 304-456-608 | 2.8 / 3.2*/ 3.7 / 4.2 (B2) | 7.5 | 180 | Each |
| Order Number | Balloon Inflated O.D. (mm) | Balloon Inflated O.D. (Fr) | Balloon Length (cm) | Inflation Pressure (ATM) | Inflation Pressure (kPa) | Minimum Working Channel (mm) | Catheter Size (Fr) | Working Length (cm) | Packaging |
|---|---|---|---|---|---|---|---|---|---|
| M00558660 | 6-7-8 | 18-21-24 | 5.5 | 3-6-10 | 304-608-1013 | 2.8 / 3.2* / 3.2 (B1) | 7.5 | 240 | Each |
| M00558670 | 8-9-10 | 24-27-30 | 5.5 | 3-5.5-9 | 304-557-912 | 2.8 / 3.2* / 3.2 (B1) | 7.5 | 240 | Each |
| M00558680 | 10-11-12 | 30-33-36 | 5.5 | 3-5-8 | 304-507-811 | 2.8 / 3.2* / 3.2 (B1) | 7.5 | 240 | Each |
| M00558690 | 12-13.5-15 | 36-40.5-45 | 5.5 | 3-4.5-8 | 304-456-811 | 2.8 / 3.2* / 3.2 (B1) | 7.5 | 240 | Each |
| M00558700 | 15-16.5-18 | 45-49.5-54 | 5.5 | 3-4.5-7 | 304-456-709 | 2.8 / 3.2*/ 3.7 / 4.2 (B2) | 7.5 | 240 | Each |
| M00558710** | 18-19-20 | 54-57-60 | 5.5 | 3-4.5-6 | 304-456-608 | 2.8 / 3.2*/ 3.7 / 4.2 (B2) | 7.5 | 240 | Each |
Recommended Inflation Device: Alliance™ II Integrated Inflation System Handle Order #5062, Sterile Syringe Order #5060. (See below)
Guidewire included and preloaded in balloon catheter.
*Requires a 2.8mm Olympus™ Brand Endoscope channel or a 3.2mm Pentax™ or Fujinon™ Brand Endoscope channel.
**These codes do not contain the under balloon RO Markers pictured above.
(B1)= Indication requires ≥ 3.2mm Duodenoscope channel
(B2)= Indication requires ≥ 4.2mm Duodenoscope channel
| Order Number | Description | Packaging |
|---|---|---|
| M00550620 | Inflation Handle | Each |
| M00550601 | Single-Use Syringe / Gauge Assembly | Box 5 |
Clinical Information
A Collection of Dilation Assisted Stone Extraction (DASE) Abstracts
Presented by a number of physicians
Literature Review, Step-by-Step Technique Guide and Case Study of DASE Procedure
Presented by Drs. Oleh Haluszka, Thomas E. Kowalski, and Jeffrey Tokar (USA)
