iLAB™ featuring ULTRA ICE™ PLUS

Ultrasound Imaging System and Ultrasound Imaging Catheter

The iLAB System in a cart-based configuration

If a portable version is a better fit, the iLAB System is also available in a cart-based configuration. Both offer an intuitive user interface, large high def monitor, touchpad interface, auto enhancement of ICE images & easy to upgrade hardware.

ULTRA ICE PLUS catheter with RDC connector

iLAB™ Ultrasound Imaging System and ULTRA ICE™ PLUS Ultrasound Imaging Catheter for Intracardiac Imaging

ICE provides the combination of real-time imaging and soft tissue visualization that cannot be duplicated by fluoroscopy, pre-operative imaging (CT or MR), or electroanatomic mapping. Not only can you identify anatomical structures, you can visualize where devices are relative to those structures.

Key Resources

Directions for Use ULTRA ICE PLUS Brochure ULTRA ICE PLUS Imaging Guide Electrophysiology Products Catalog iLAB Service Brochure Indications, Safety and Warnings

Receive Product Updates

Request a Sales Rep

Submit Your Questions

ExpertCare Service Plans

Explore

Product Details

iLAB Ultrasound Imaging System

iLAB transformed visualization during EP procedures as the first intracardiac ultrasound system customized for the EP lab. It offers an easy user interface and automatic enhancement of ICE images. The Modular hardware design comes either installed or on a cart allowing flexibility to upgrade. The iLAB system is compatible with all Boston Scientific ultrasound catheters: Intracardiac (ICE), Intravascular (IVUS) and Peripheral (PI).

ULTRA ICE PLUS Catheter

The Boston Scientific ULTRA ICE PLUS catheter is designed to provide precise, real-time visualization of both intracardiac anatomy and devices positioned within the heart. Not only does it help you in identifying anatomical structures, it also helps you in visualizing where your devices are relative to those structures.

Device Illustration

Unique Vision: 360° Views and Detailed Near-Field Resolution

The ULTRA ICE PLUS Catheter generates a cross-sectional and panoramic 360° image perpendicular to the catheter, with the tip as a central reference point. This allows the user to visualize structures (such as the fossa) directly adjacent to the catheter tip and still see a detailed cross-section of the entire septum.

Image Comparison

Benefit of Use

The ULTRA ICE PLUS catheter is indicated for enhanced visualization of cardiac structures and is designed to optimize performance when imaging by enabling users to position the catheter directly adjacent to areas of interest, like the proximal coronary sinus, fossa ovalis, or pulmonary veins. Its 360 degree, forward looking visualization field provides greater near-field resolution than phased array catheters, without the need to manually move the catheter away from a target area to adjust focal distance.

Know Where You Are

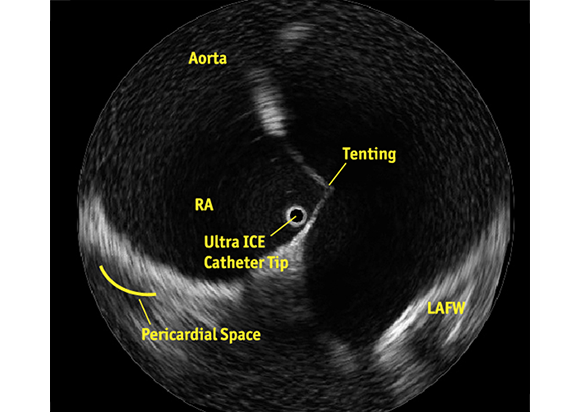

ULTRA ICE PLUS catheter positioned in the right atrium, adjacent to the fossa ovalis, visualizing the structures critical to successful transseptal puncture: the septum, aorta, needle position, tenting, and the LAFW.

See What You Want to Avoid

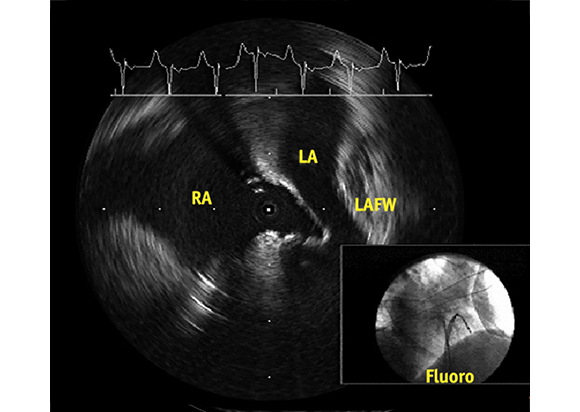

Notice the patient’s reduced Left Atrium, the tenting of the septum and its relationship to the LAFW. The corresponding fluoroscopic image may suggest that puncture has already occurred. However, the ULTRA ICE PLUS image shows that this is not the case and guides the physician to redirect the needle in a puncture angle away from the LAFW.

Crossing to the Septum to Help Guiding Left Sided Procedures

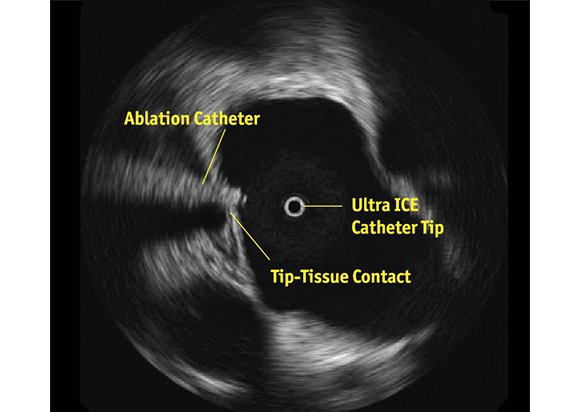

A key application for the ULTRA ICE PLUS catheter involves crossing the septum and then monitoring and helping to guide left-sided procedures. In this setting, ULTRA ICE PLUS catheter is designed to allow the user to:

Visualize left atrial anatomy
Confirm catheter location relative to the anatomy
Verify tip-to-tissue contact
Identify location of the esophagus relative to the ablation catheter
Characterize acute lesion morphology: swelling, dimpling, and crater formation
Monitor for any early signs of thrombus formation, stenosis, or pericardial effusion

Product Specifications of iLAB Ultrasound Imaging System

Description	Specifications
Catheter rotation mechanism	Handheld motor-drive unit
Image resolution	512 x 512
Recording Format	Standard DICOM
Recording capabilities	Digital (CD, DVD, 35 GB removable hard drive, network)
Monitor	19” LCD Flat Panel
Compatibility	Supports BSC interventional, intracardiac, and peripheral ultrasound imaging catheters
Cart weight	213 lbs

Product Specifications of ULTRA ICE PLUS Ultrasound Imaging Catheter

Description	Specifications
Shaft Diameter	8.5 Fr
Usable Length	110 cm
Imaging frequency	9 MHz
Ultrasound type	Mechanically rotating transducer
Distance from transducer to tip	1.0 cm
Image type	Panoramic 360° view
Imaging depth	~6 cm radius (~12 cm diameter)
Axial resolution	≦ 0.29 mm
Shaft rotation speed	1800 RPM
Frame refresh rate	30 frame/sec
Ultrasound pulse per full rotation	256

Product Compatibility

Imaging System	Catheter	Motor Drive Unit
iLAB with software version 2.7 or higher	ULTRA ICE PLUS	MDU5 PLUS
iLAB with POLARIS™ software	ULTRA ICE PLUS	MDU5 PLUS
Galaxy	Not available	Not available

Ordering Information

Description	UPN
ULTRA ICE PLUS Catheter	M004 9912 0
Fluid Dock™ Filling Device	M004 9915 1
MDU5 PLUS Motor Drive	H749MDU5PLUS0
MDU5 PLUS Sterile Bag	H749MDU5PLUSBAG0
iLAB^TM Ultrasound Imaging System (Integrated)	H749ILAB120N2710
iLAB^TM Ultrasound Imaging System (Cart)	H749ILAB120C2710

Reimbursement
