Pre-operative right humerus lesion embolization
Courtesy of Dr. Abhishek Kumar I Rutgers New Jersey Medical School
Presentation
72-year-old man with history of multiple myeloma presented with a right humerus lytic lesion and limited range of motion. Interventional Radiology was consulted for pre-operative embolization prior to surgical fixation.
Intervention used

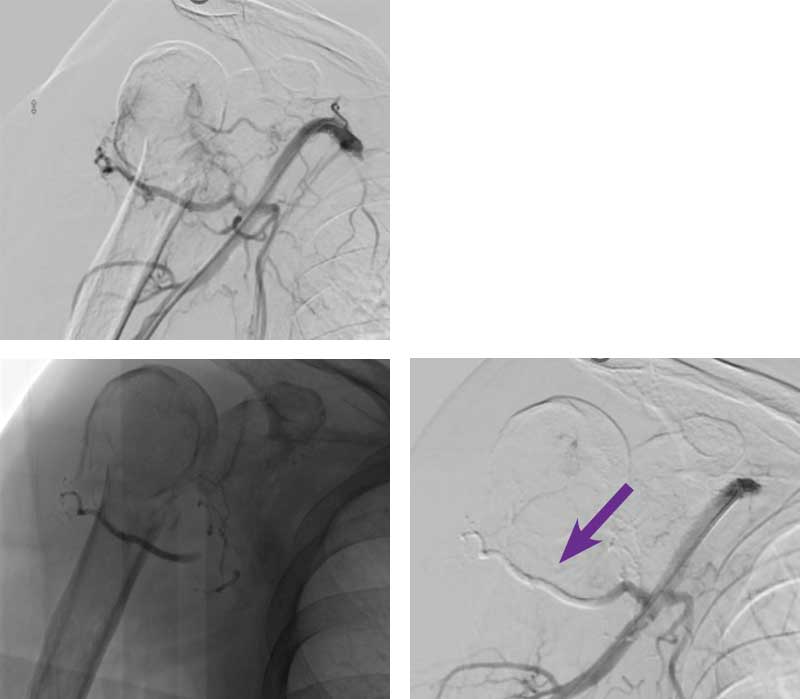

Right radial access was gained and a 5 F sheath was placed. A 5 F angled catheter was placed in the right subclavian artery and an angiogram was performed. Angiography revealed a hypervascular lesion in the right humerus supplied by multiple vessels. A 2.8 F microcatheter and 0.014” wire were used to select the first vessel supplying the lesion and embolization performed with a 0.3 cc aliquot of Obsidio Embolic. The microcatheter was removed, flushed and used again to select two additional branches where 0.2 cc of Obsidio Embolic was deployed into each vessel. A total of 3 vessels were embolized with a total of approximately 0.7 cc of Obsidio Embolic. Obsidio Embolic casts in the vessels is highlighted in post-imaging. Completion angiography via the base catheter showed complete embolization of the left internal mammary artery. A still image shows Obsidio Embolic cast occluding the vessel.
Outcome
The patient underwent successful surgical fixation with minimal blood loss.
Results from case studies are not necessarily predictive of results in other cases. Results in other cases may vary.
