VersaCross™ Large Access Solution
VersaCross Large Access Solution enables access, dilation, and delivery of large therapy sheaths with a single, exchangeless solution.
Configure or select a product to continue to order
- Overview
- Clinical data
- Technical specifications
- Ordering information
- Training
- Resources
Access, dilate, and deliver
Large therapy sheaths with a single, exchangeless solution

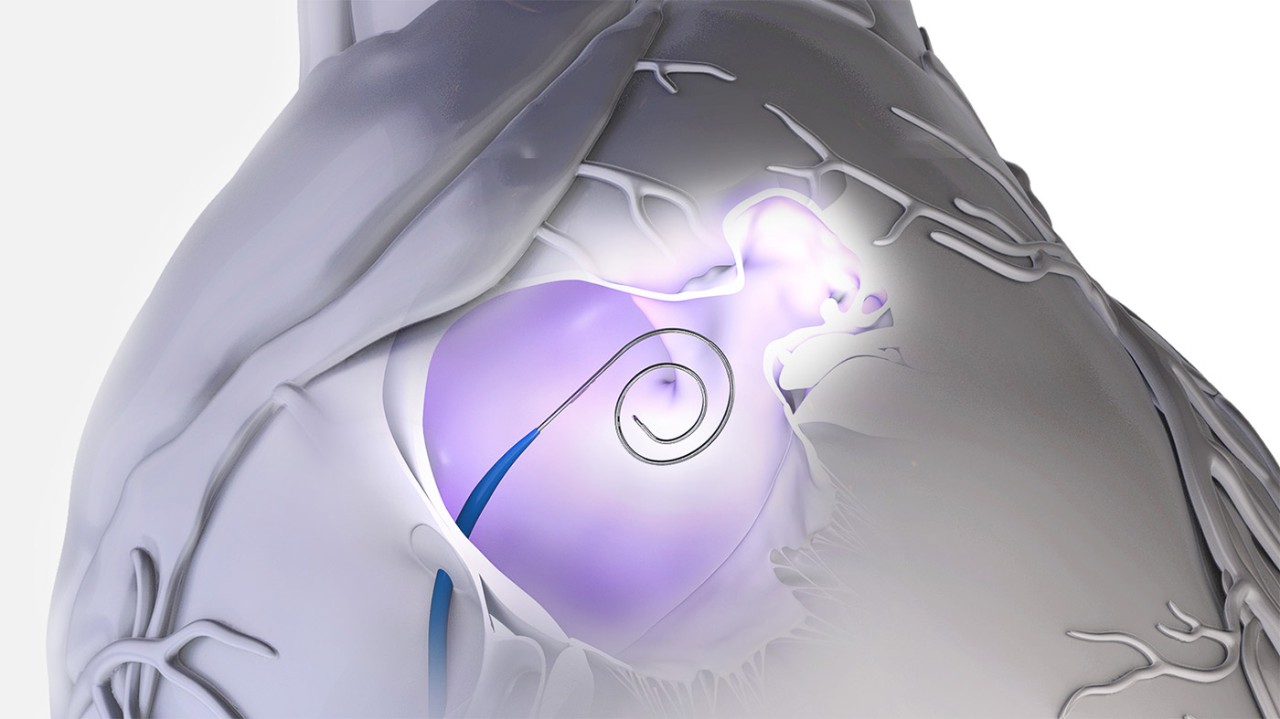

![VersaCross Large Access Solution assembly with seamless dilator and exchangeless, 3-in-1 RF wire.](/content/experience-fragments/ewp/corporate/na/us/en/healthcare-professionals/products/ep/fp00000301/master/_jcr_content/root/container/tabs_copy_copy/item_1698250978130/container_1419981025/container_copy/image.coreimg.jpeg/1699563518759/illustration-equipment-versacross-large-access-solution-transseptal-pigtail-1400x787.jpeg)
How it works
Clinical footage of the VersaCross Large Access Solution, a single, exchangeless solution for optimized delivery of large therapy sheaths
Results from case studies are not necessarily predictive of results in other cases. Results in other cases may vary.
Why choose the VersaCross Large Access Solution

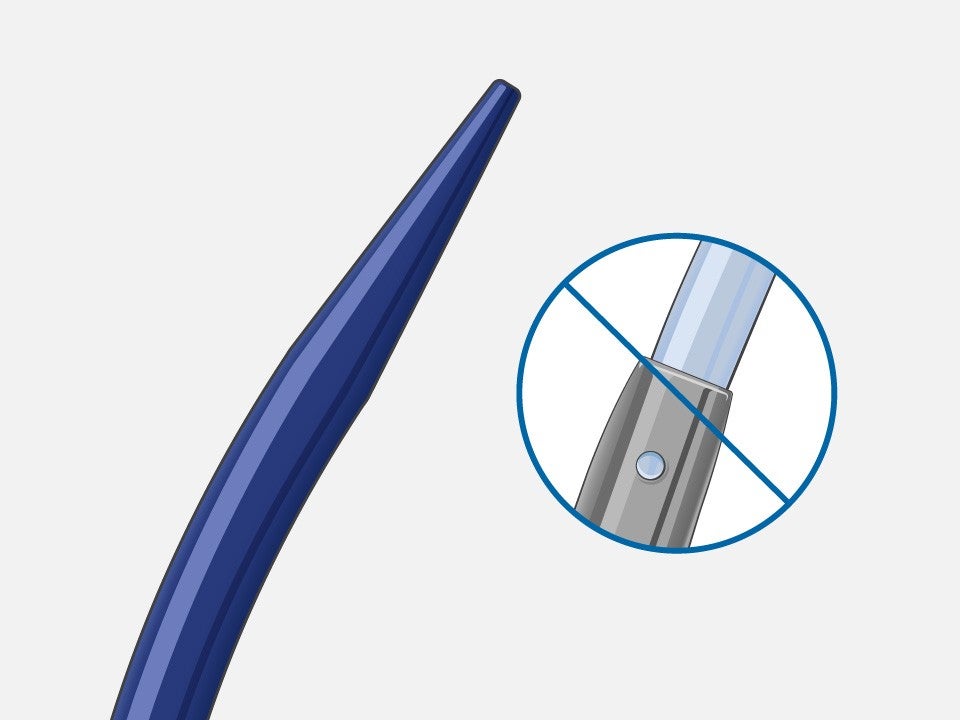

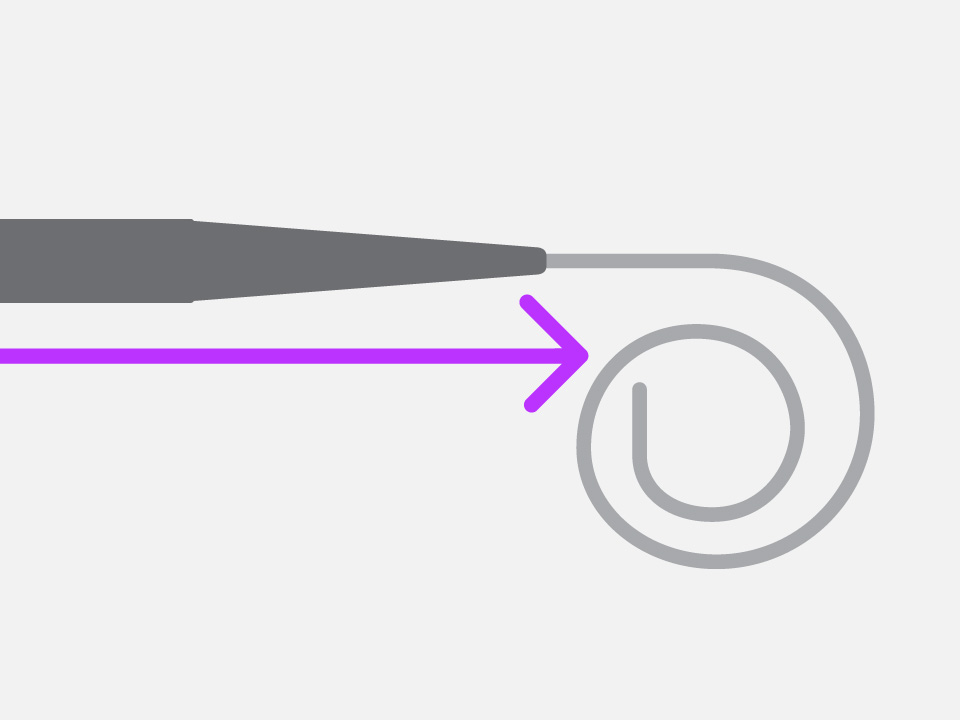

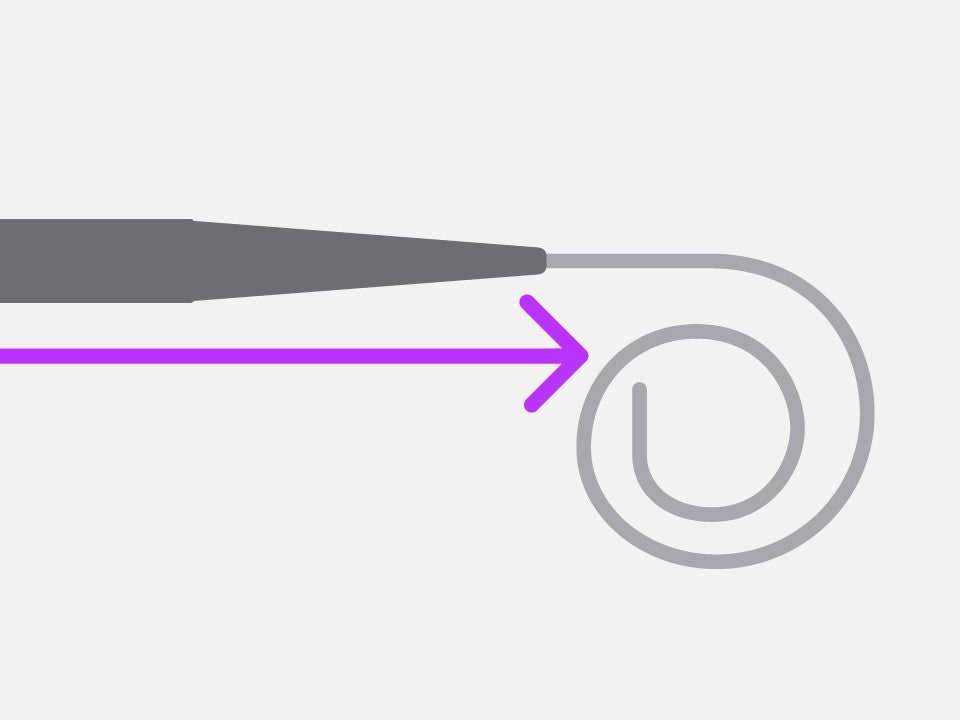

Optimize dilation and delivery of large therapy sheaths
Three solutions, one device

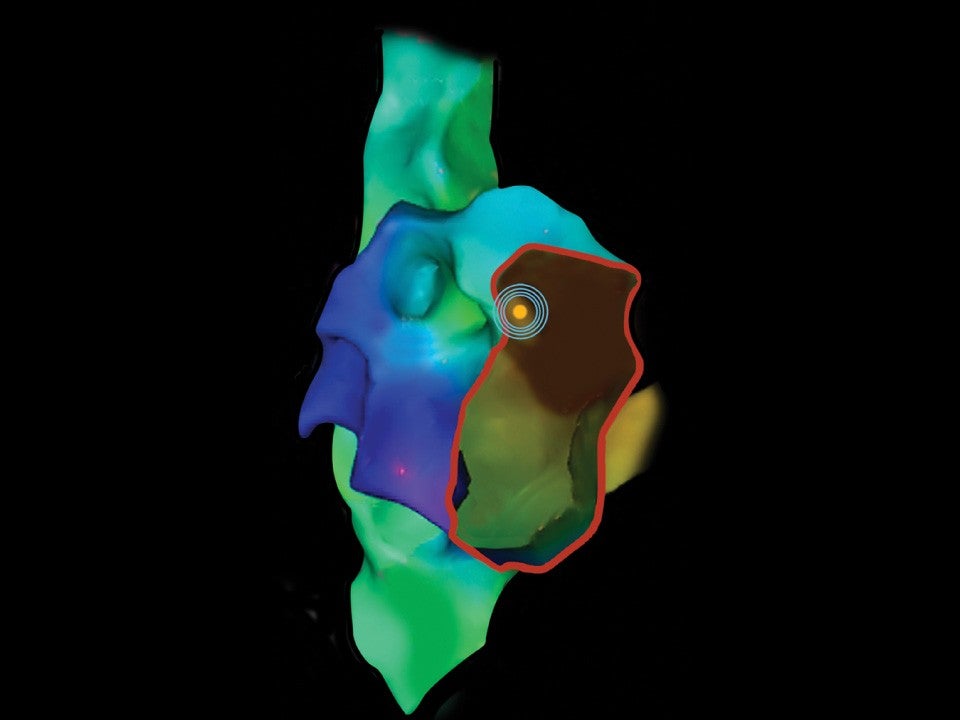

Know where you are at all times

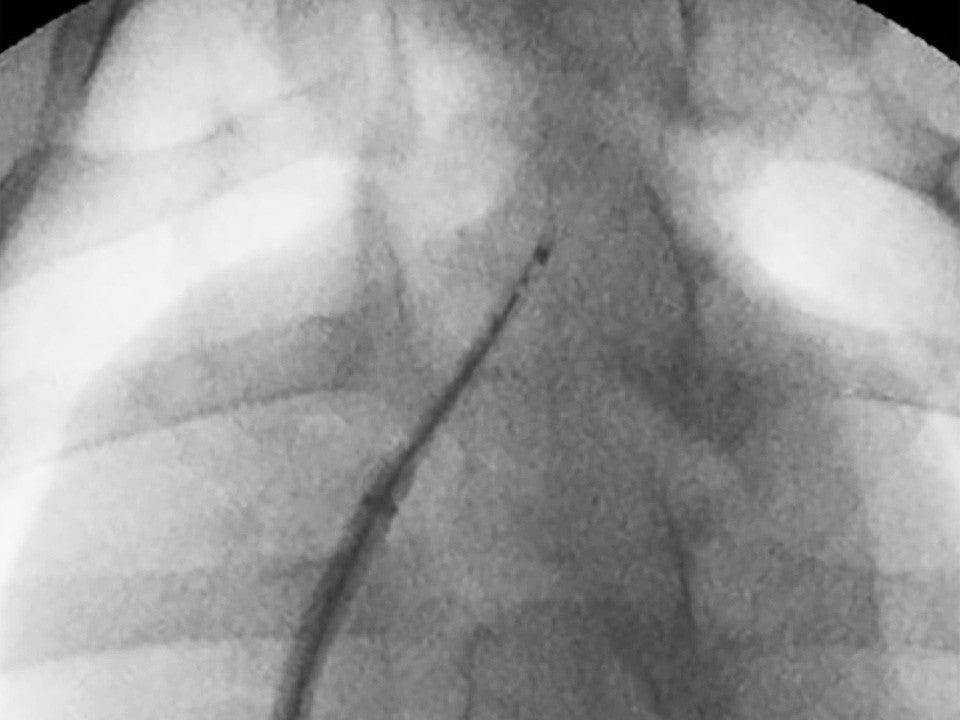

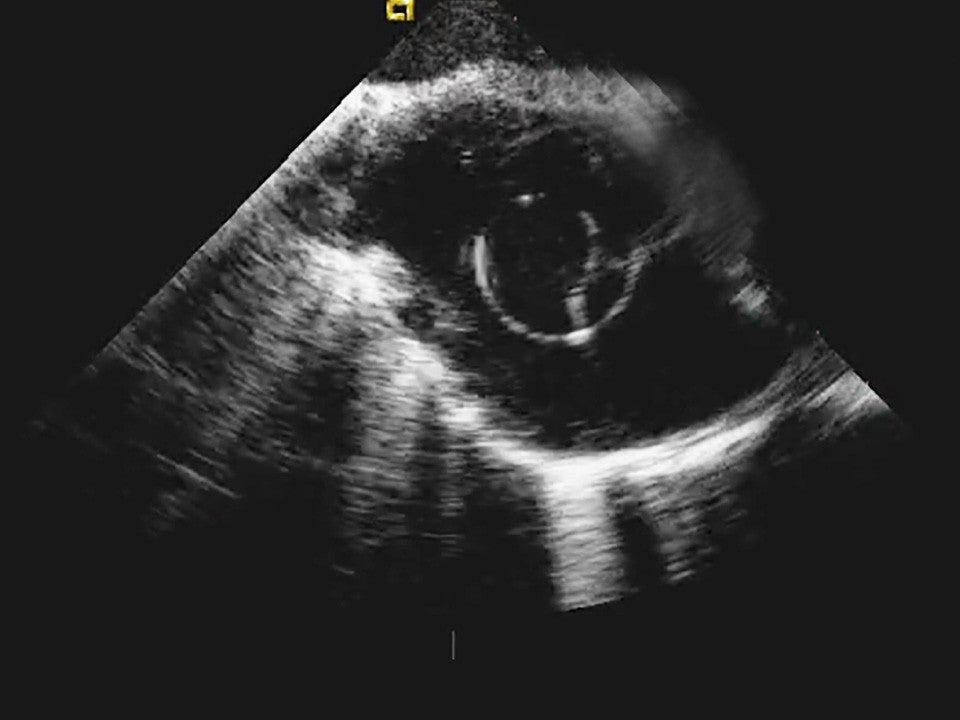

OMNIviz™ technology enhances visualization on fluoroscopy, ultrasound, and electrical anatomical mapping
What’s included
The VersaCross Large Access Solution includes:
- VersaCross RF Wire (j-tip or pigtail)
- Single-use RFP-100A Connector Cable
- VersaCross Large Access Transseptal Dilator (12.5F) with TRUform shapeable technology
- 0.035” guidewire
Required product

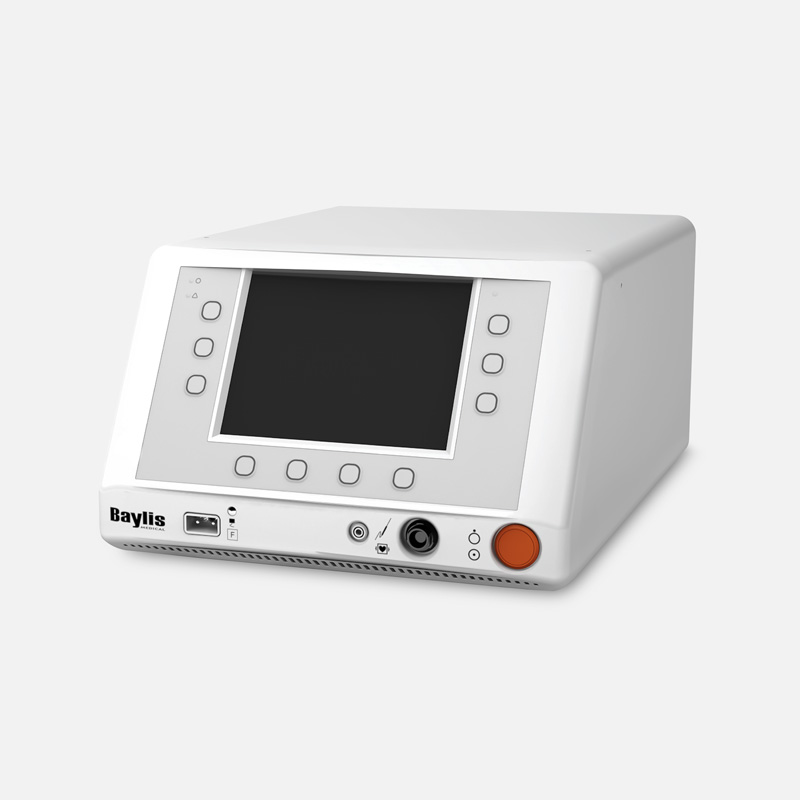

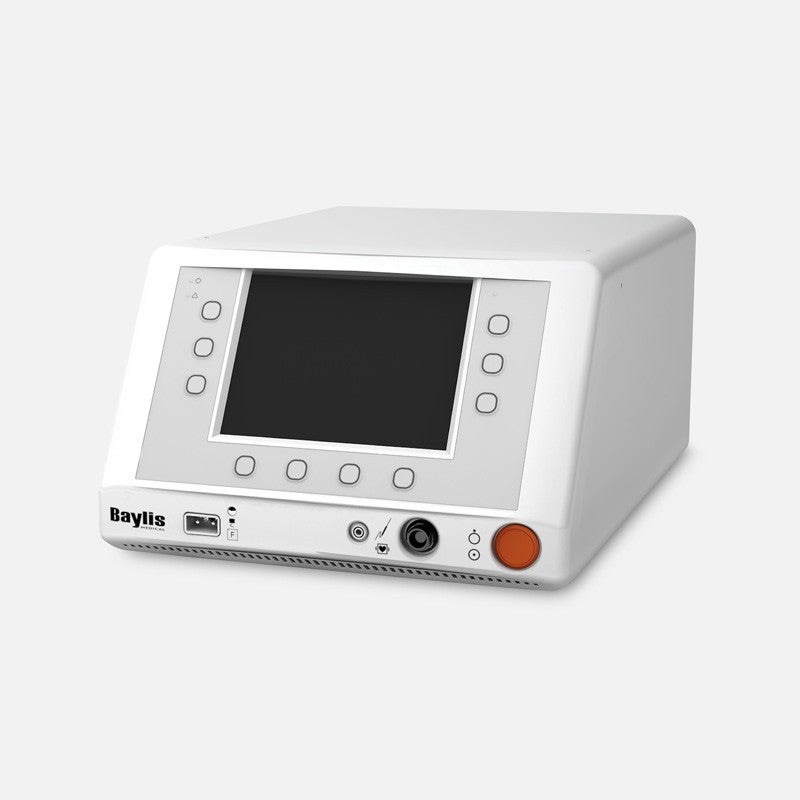

![RFP-100A RF Puncture Generator.](/content/experience-fragments/ewp/corporate/na/us/en/healthcare-professionals/products/ep/fp00000301/master/_jcr_content/root/container/tabs_copy_copy/item_1698250978130/image_1648108885.coreimg.jpeg/1699310096834/photo-equipment-rfp-100a-rf-puncture-generator-800x800.jpeg)
Designed for controlled tissue puncture using radiofrequency energy
Publication summaries
July 2023, Asfour et al., published in Journal of Cardiovascular Electrophysiology
Use of the VersaCross Large Access Solution allowed de novo dilation of septum for smoother delivery of the WATCHMAN™ FXD Access Sheath into the LA, leading to an overall more streamlined left atrial appendage closure (LAAC) procedure with fewer device exchanges than the use of the NRG™ RF needle for transseptal puncture.
Note: The VersaCross Large Access Transseptal Dilator has an outer geometry and crossing profile identical to that of the ExpanSure Large Access Dilator cited in these studies.
VersaCross RF Wire
Feature | Specifications |
Tip configurations | J-tip, pigtail |
Curve shape | 9 mm (j-tip), 24 mm (pigtail) |
Wire diameter | 0.035" |
Overall length | 180 cm, 230 cm |
VersaCross Large Access Transseptal Dilator
Feature | Specifications |

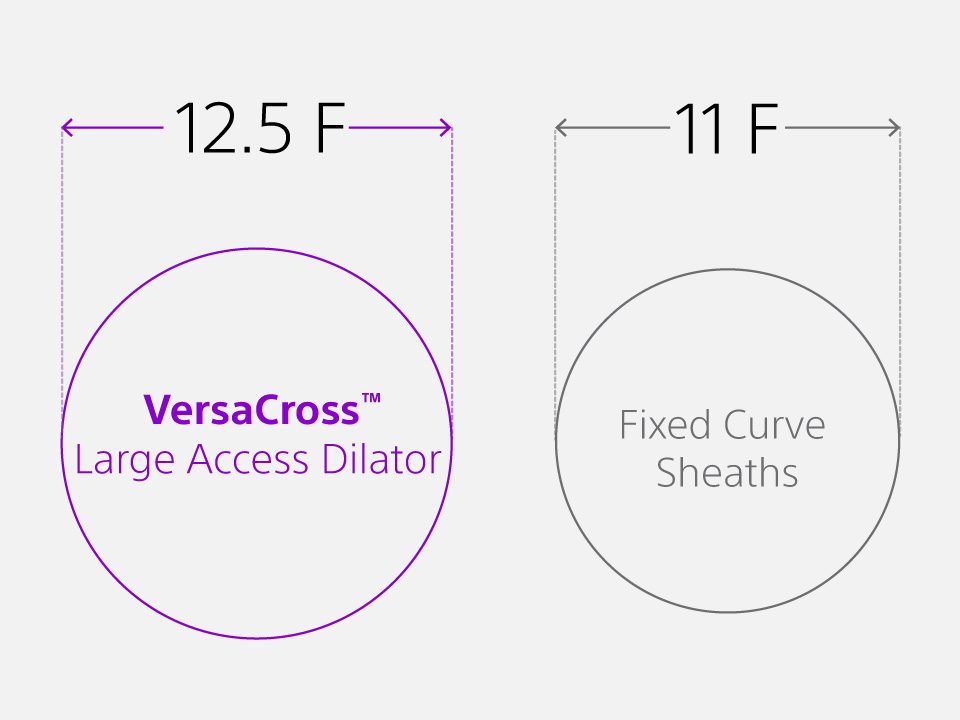

Outer diameter | 12.5 F (4.17 mm) |
Inner diameter | 0.035" |
Usable length | 67 cm, 85 cm |
Curve | D0, D1 |
Ordering information
1. Choose your VersaCross RF Wire
J-tip, pigtail

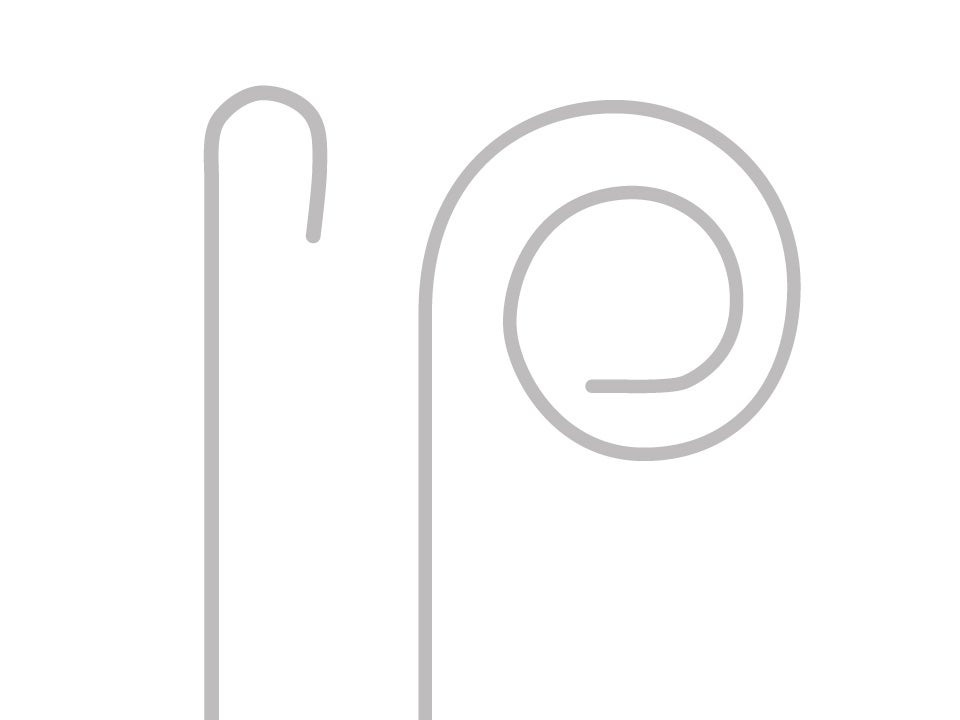

![VersaCross RF Wire in j-tip and pigtail configurations.](/content/experience-fragments/ewp/corporate/na/us/en/healthcare-professionals/products/ep/fp00000301/master/_jcr_content/root/container/tabs_copy_copy/item_1699289652270/container_1666034355/image.coreimg.jpeg/1710171366930/illustration-equipment-versacross-access-solution-wire-options-960x720.jpeg)
VersaCross RF Wire |
RF wire length: 180 cm, 230 cm |
Wire diameter: 0.035" |
Curve diameter: 9 mm (j-tip), 24 mm (pigtail) |
2. Choose your VersaCross Large Access Transseptal Dilator to complete your solution |
![VersaCross Large Access Transseptal Dilator with TRUform technology, curve options D0 and D1.](/content/experience-fragments/ewp/corporate/na/us/en/healthcare-professionals/products/ep/fp00000301/master/_jcr_content/root/container/tabs_copy_copy/item_1699289652270/container_1666034355_432199856/image.coreimg.png/1699565052954/illustration-equipment-versacross-large-access-solution-sheath-options-960x720.png)
VersaCross Large Access Transseptal Dilator with TRUform shapeable technology |
Inner Diameter: 0.035" |
Outer Diameter: 12.5 F |
Usable length: 67 cm, 85 cm |
In-person training
Explore in-person training opportunities for electrophysiologists and interventional cardiologists of all experience levels.
![Surgeons in operating room.](/content/experience-fragments/ewp/corporate/na/us/en/healthcare-professionals/products/ep/fp00000301/master/_jcr_content/root/container/tabs_copy_copy/item_1698251014714/container_11989237_c/container_420342686/image.coreimg.jpeg/1699313250701/16-9-surgeons-bleached-bypass-stock.jpeg)
Online education
![Innovative Workflows for Transseptal Structural Interventions video.](/content/experience-fragments/ewp/corporate/na/us/en/healthcare-professionals/products/ep/fp00000301/master/_jcr_content/root/container/tabs_copy_copy/item_1698251014714/container_11989237_c/container_copy_copy_/container_1870226860/image.coreimg.png/1699565445313/photo-digitalpresentation-versacross-large-access-solution-innovative-workflows-structural-interventions-ep-1577808-aa.png)
Innovative Workflows for Transseptal Structural Interventions
In this on-demand webcast, originally transmitted as a Satellite Session at CRF TCT 2021, Saurabh Sanon, MD presents on Best Practices for Efficient TEER and LAAC with use of the VersaCross Large Access Solution.
On-site transseptal simulator training
Hands-on training on the use of RF-based transseptal platforms in various clinical scenarios using virtual reality technology, echocardiography simulators, and anatomical models.
Online medical training and education courses
The EDUCARE online platform makes healthcare education and training more relevant, more comprehensive, more personal, and more accessible. Register to access a library of procedural videos, case studies, training resources, and events.
Order guide
Brochure
Analysis
Video
Access, dilate, and deliver large therapy sheaths with the VersaCross Large Access Solution
*Baylis Medical Company Radiofrequency Puncture Generator RFP-100A
