VersaCross Connect™ LAAC Access Solution
Configure or select a product to continue to order
- Overview
- Clinical data
- Technical specifications
- Ordering information
- Training
- Resources
Zero exchange delivery of WATCHMAN Access Systems*

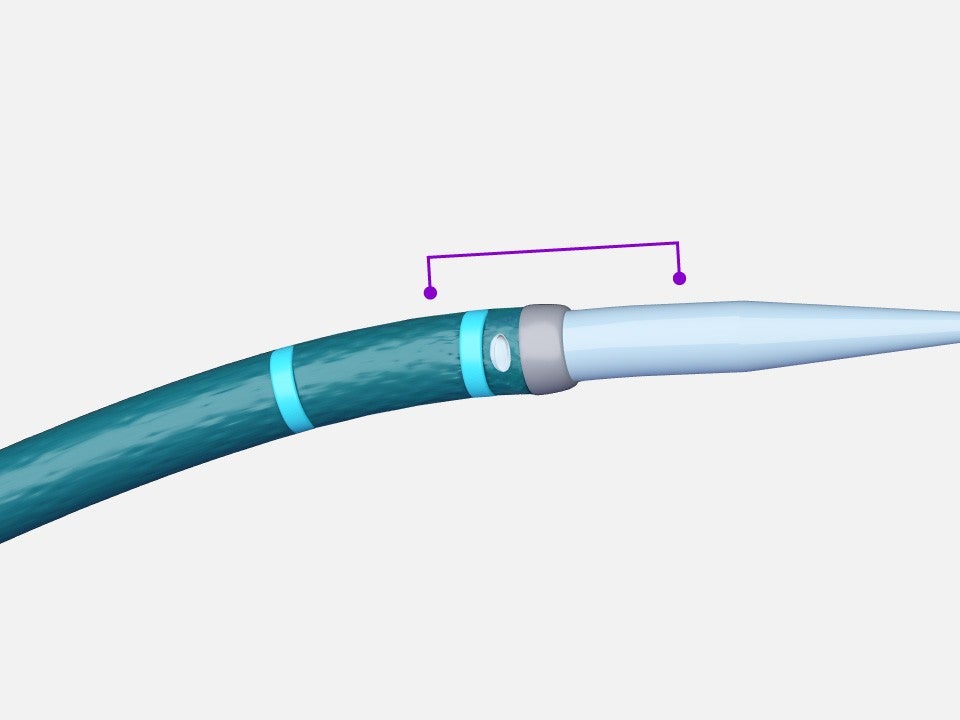

The VersaCross Connect LAAC Access Solution connects VersaCross technology with WATCHMAN* sheaths for zero exchange left heart access.
How it works

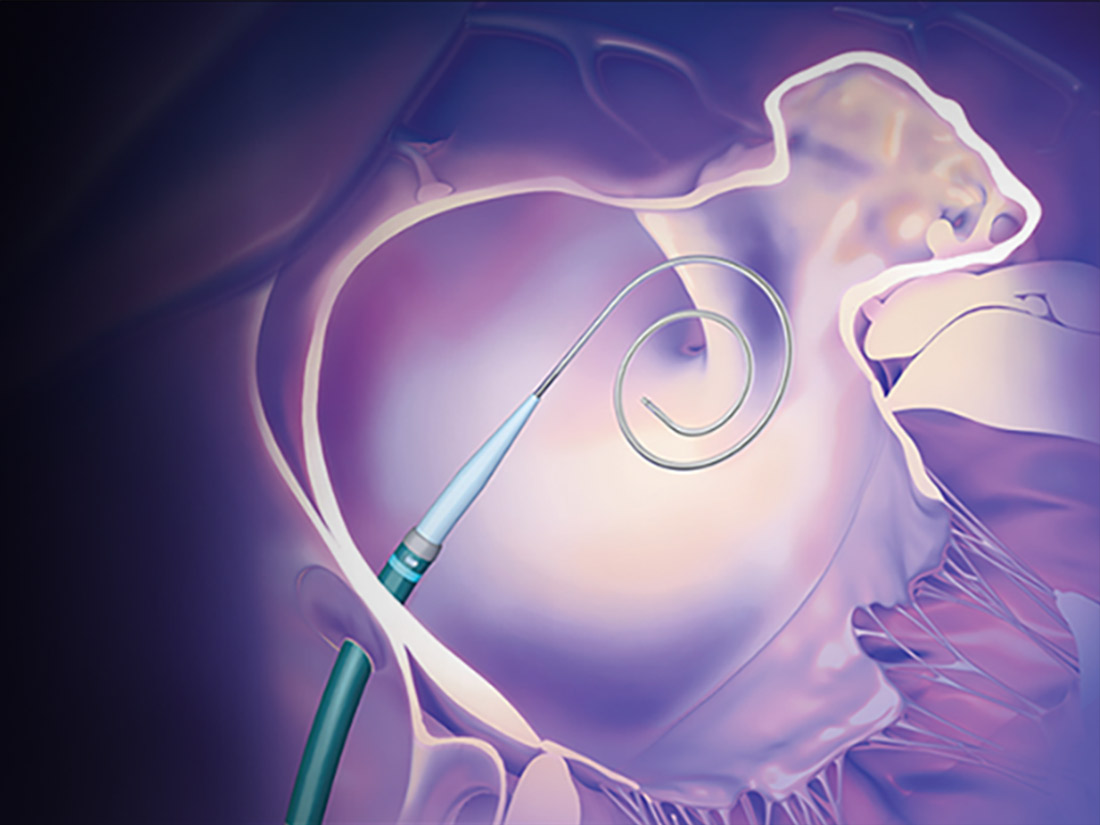

Discover how the 3-in-1 RF wire and transseptal dilator simplify left atrial appendage closure (LAAC) by connecting the VersaCross Connect Transseptal Dilator and WATCHMAN Access Sheath* for zero exchange left heart access
Why choose the VersaCross Connect LAAC Access Solution

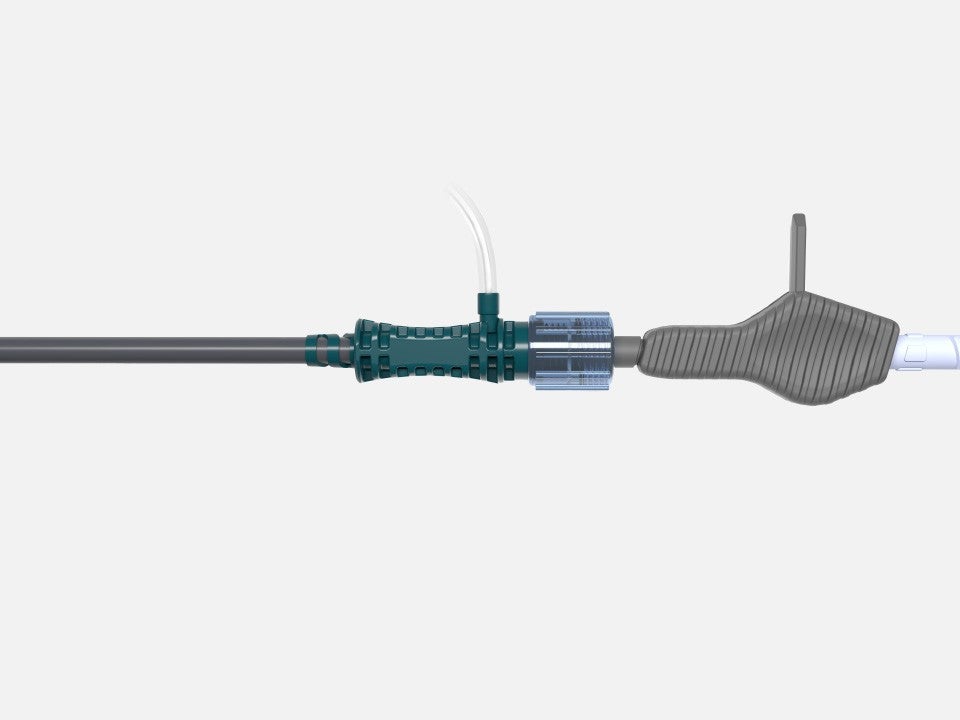

All-in-one transseptal access solution designed for use with WATCHMAN Access Systems*

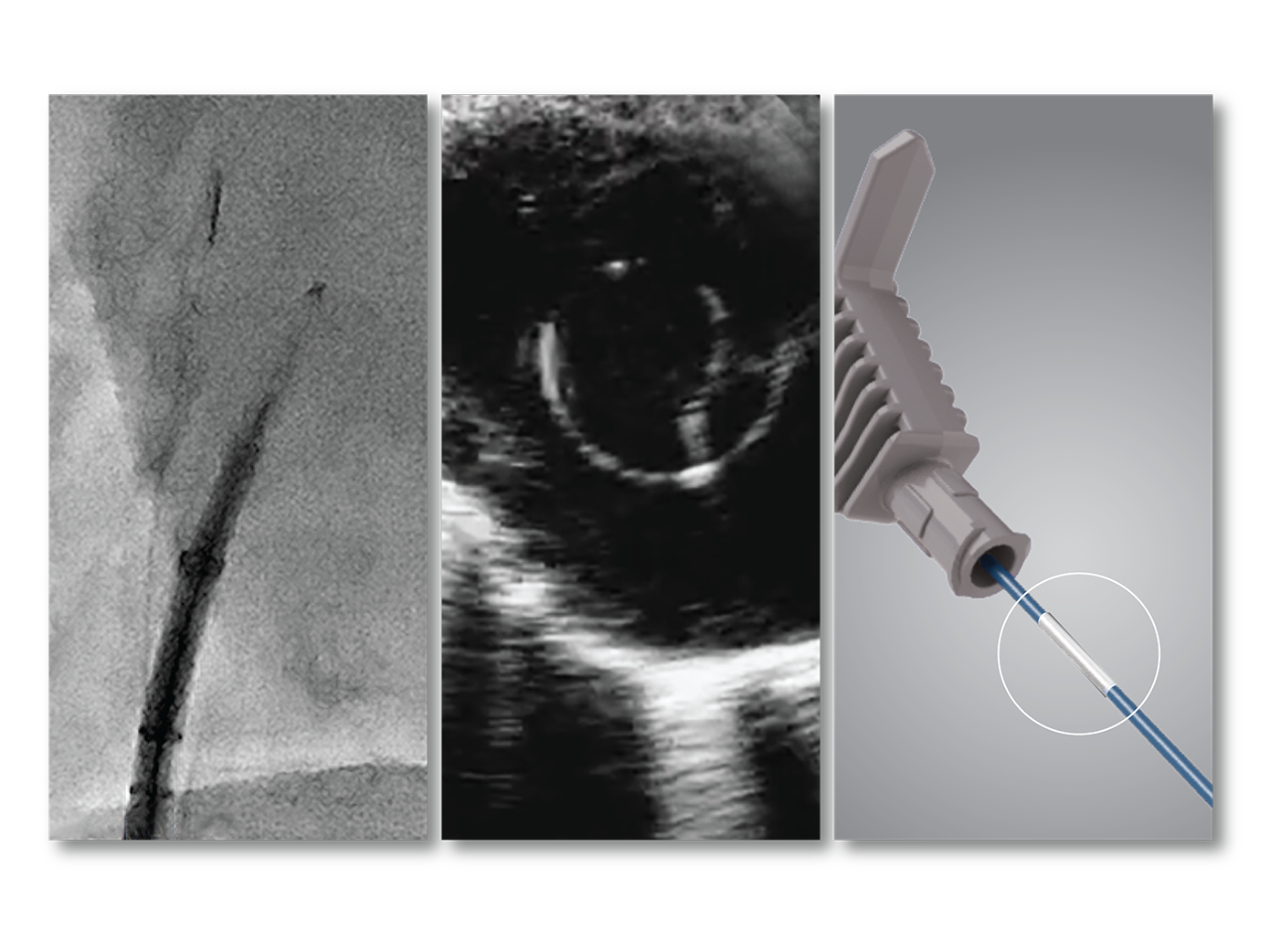

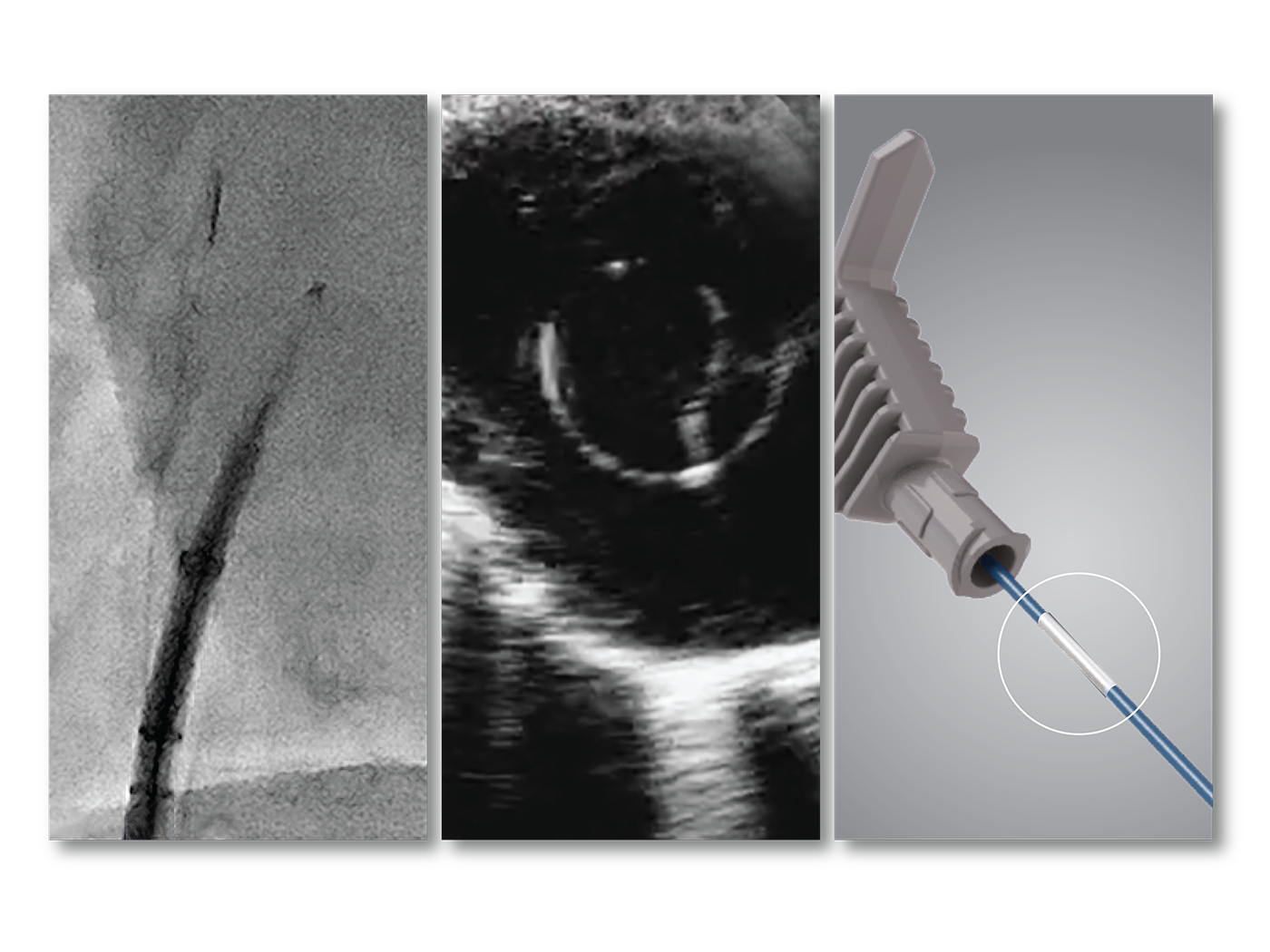

Know where you are at all times with OMNIviz™ technology
Reliably locate the VersaCross Connect solution on fluoroscopy and ultrasound. Positional markers indicate position of RF tip within dilator. Connect to DuoMode™ Cable to track and mark RF tip on mapping system.
What’s included
The VersaCross Connect LAAC Access Solution includes:
- VersaCross RF Wire (j-tip or pigtail)
- Single-use RFP-100A Connector Cable
- VersaCross Connect Transseptal Dilator (12.5F) with TRUform™ shapeable technology
- 0.035” guidewire

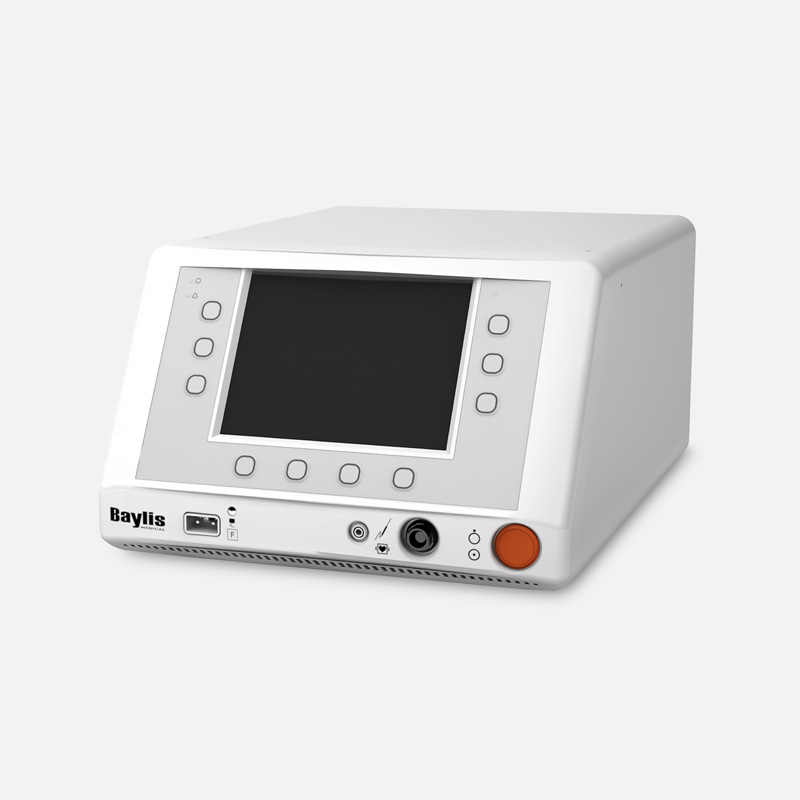

Required product
Designed for controlled tissue puncture using radiofrequency energy
Publication summaries
November 2022, Perrin et al., published in Catheterization and Cardiovascular Interventions
First in-human experience using the VersaCross Connect LAAC Access Solution for WATCHMAN FLX™ Left Atrial Appendage Closure Device implantation was successful in all patients with no procedural complications. VersaCross Connect improved procedural efficiency and saved six steps compared to the standard needle-based workflow.
VersaCross RF Wire
| Feature | Specifications |

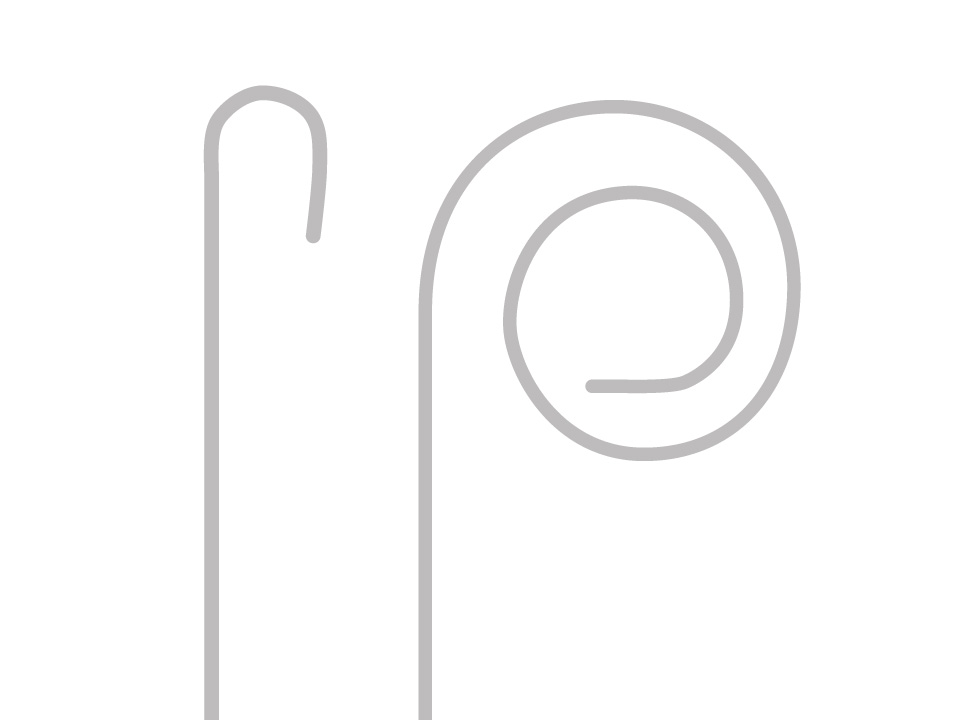

| Tip configurations | J-tip, pigtail |
| Curve shape | 9 mm (j-tip), 24 mm (pigtail) |
| Wire diameter | 0.035" |
| Overall length | 180 cm, 230 cm |
VersaCross Connect Transseptal Dilator
| Feature | Specifications |
| Outer diameter | 12F (4.09 mm) |
| Inner diameter | 0.035" |
| Usable length | 85 cm |

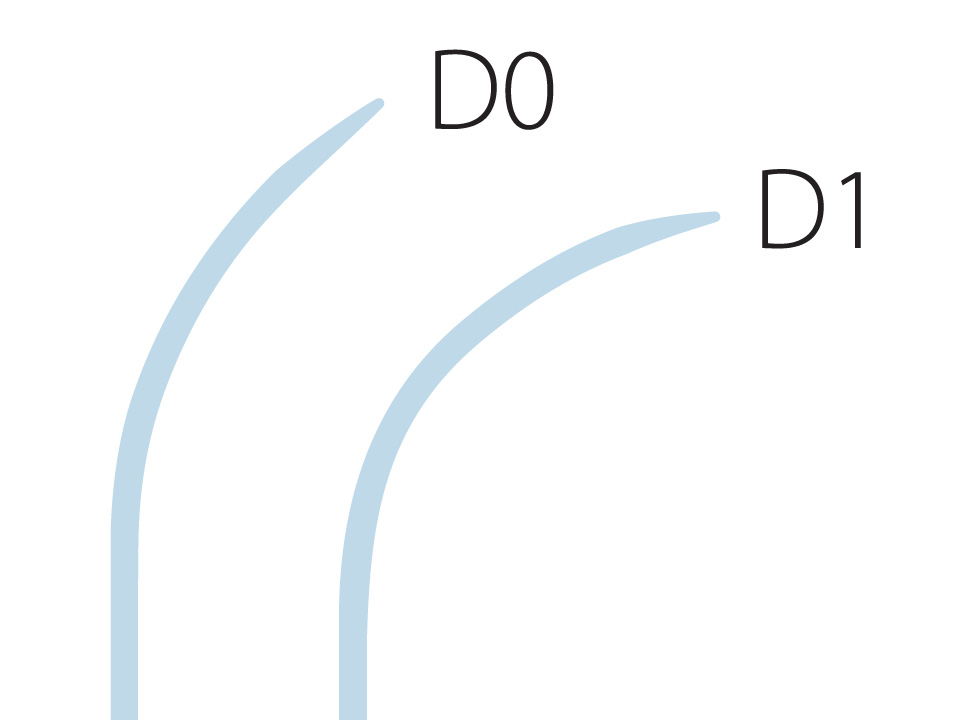

| Curve | D0, D1 |
Ordering information
| 1. Choose your VersaCross RF Wire |
J-tip, pigtail
| VersaCross RF Wire |
| RF wire length: 180 cm, 230 cm |
| Wire diameter: 0.035" |
| Curve diameter: 9 mm (j-tip), 24 mm (pigtail) |
| 2. Choose your VersaCross Connect Transseptal Dilator to complete your solution |
| VersaCross Connect Transseptal Dilator with TRUform™ shapeable technology |
| Inner diameter: 0.035" |
| Outer diameter: 12F |
| Usable length: 85 cm |
In-person training
Explore in-person training opportunities for electrophysiologists and interventional cardiologists of all experience levels.
Online education
Zero Exchange Transseptal Puncture for LAAC - Virtual Case Presentation
Devi Nair, MD describes how the VersaCross Connect LAAC Access Solution streamlines transseptal workflow for WATCHMAN FXD Curve Access System delivery.
Vamsee Yaganti, MD walks through his transseptal workflow for zero exchange WATCHMAN FLX procedures using the VersaCross Connect LAAC Access Solution.
Vamsee Yaganti, MD walks through best practices for use of the VersaCross Connect LAAC Access Solution for zero exchange WATCHMAN FLX sheath delivery.
On-site transseptal simulator training
Hands-on training on the use of RF-based transseptal platforms in various clinical scenarios using virtual reality technology, echocardiography simulators, and anatomical models.
Online medical training and education courses
The EDUCARE online platform makes healthcare education and training more relevant, more comprehensive, more personal, and more accessible. Register to access a library of procedural videos, case studies, training resources, and events.
Order guide
Brochure
Analysis
All trademarks are the property of their respective owners.
* The VersaCross Connect Transseptal Dilator is for use with a 12F (4.09 mm) ID WATCHMAN Access Sheath that is 75 cm in length or the WATCHMAN TruSteer™ Access Sheath that is 67 cm in length, specifically: WATCHMAN Access System [Models: M635TU40060, M635TU10060, M635TU20060]; WATCHMAN TruSeal™ Access System [Models: M635TU70010, M635TU70040, M635TU70020]; WATCHMAN FXD Curve™ Access System [Models: M635TU80010, M635TU80020]; WATCHMAN TruSteer Access System [Model: M635TU90050].
† Baylis Medical Company Radiofrequency Puncture Generator RFP-100A. Baylis Medical Company is a wholly owned subsidiary of Boston Scientific Corporation.
