VersaCross Connect™ Access Solution for FARADRIVE™
The VersaCross Connect™ Access Solution for FARADRIVE™ connects VersaCross™ technology with the FARADRIVE Steerable Sheath for an integrated zero exchange left heart access workflow.
Configure or select a product to continue to order
- Overview
- Technical specifications
- Ordering information
- Training
- Resources
Zero exchange FARADRIVE Steerable Sheath delivery
For use with the FARAPULSETM Pulsed Field Ablation System

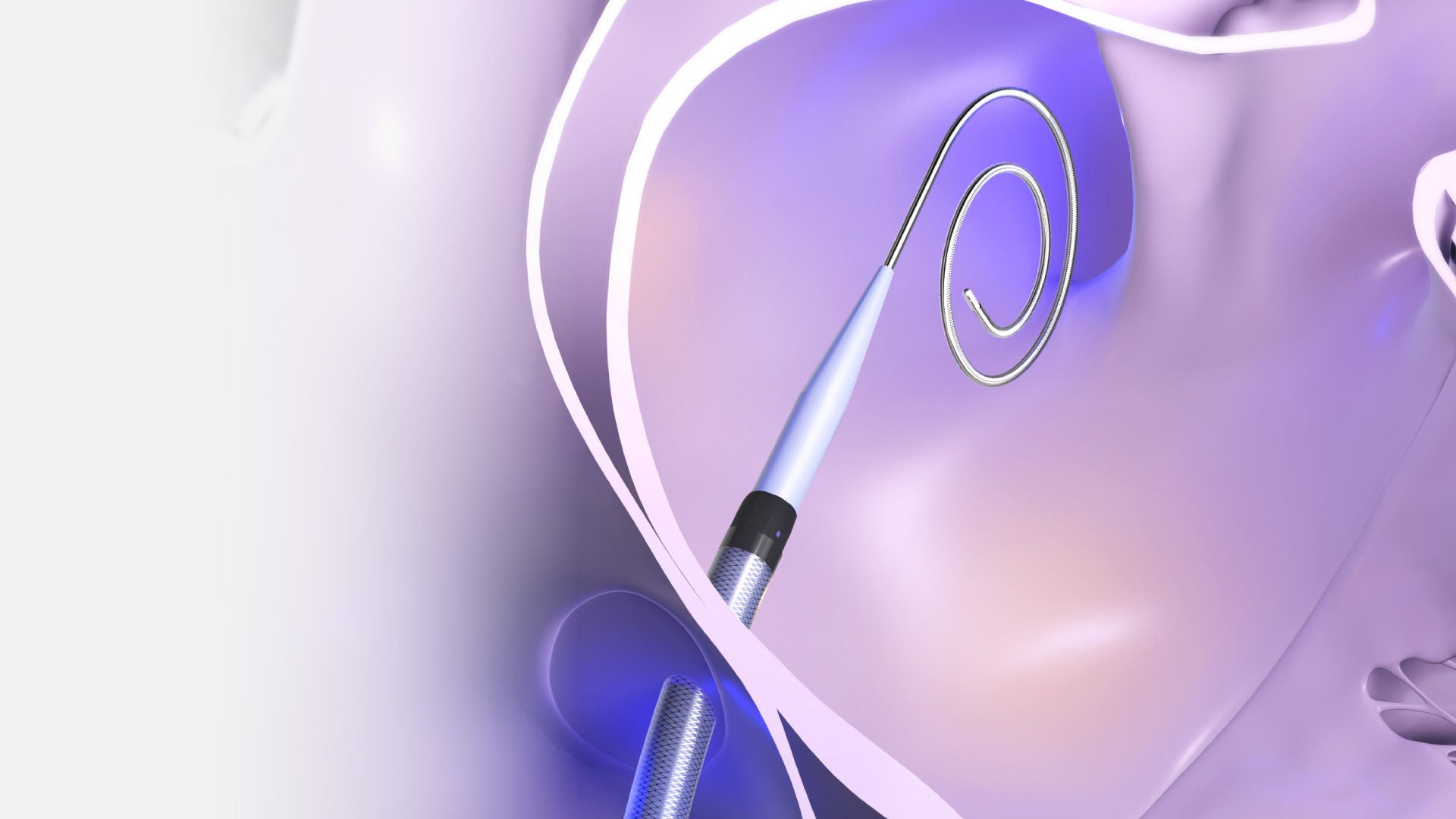

The VersaCross Connect Access Solution for FARADRIVE connects VersaCross technology with the FARADRIVE Steerable Sheath* for an integrated zero exchange left heart access workflow.
![Example imfaradriveage.](/content/experience-fragments/ewp/corporate/na/us/en/healthcare-professionals/products/ep/fp00000399/master/_jcr_content/root/container/tabs/item_1702581500499_c/container_copy_224380648/container_copy_copy/image.coreimg.jpeg/1716334595388/illustration-equipment-faradrive-steerable-sheath-handle-curved-tips-2729x1888.jpeg)
![Example imfaradriveage.](/content/experience-fragments/ewp/corporate/na/us/en/healthcare-professionals/products/ep/fp00000399/master/_jcr_content/root/container/tabs/item_1702581500499_c/container_copy_224380648/container_copy_copy_/image.coreimg.png/1716334601503/faradrive-steerable-sheath-stacked-lock-up-black.png)
The FARADRIVE Steerable Sheath is part of the FARAPULSE PFA System. No PFA system is more clinically proven.
Why choose the VersaCross Connect Access Solution for FARADRIVE
All-in-one transseptal access solution designed for use with the FARADRIVE Steerable Sheath*

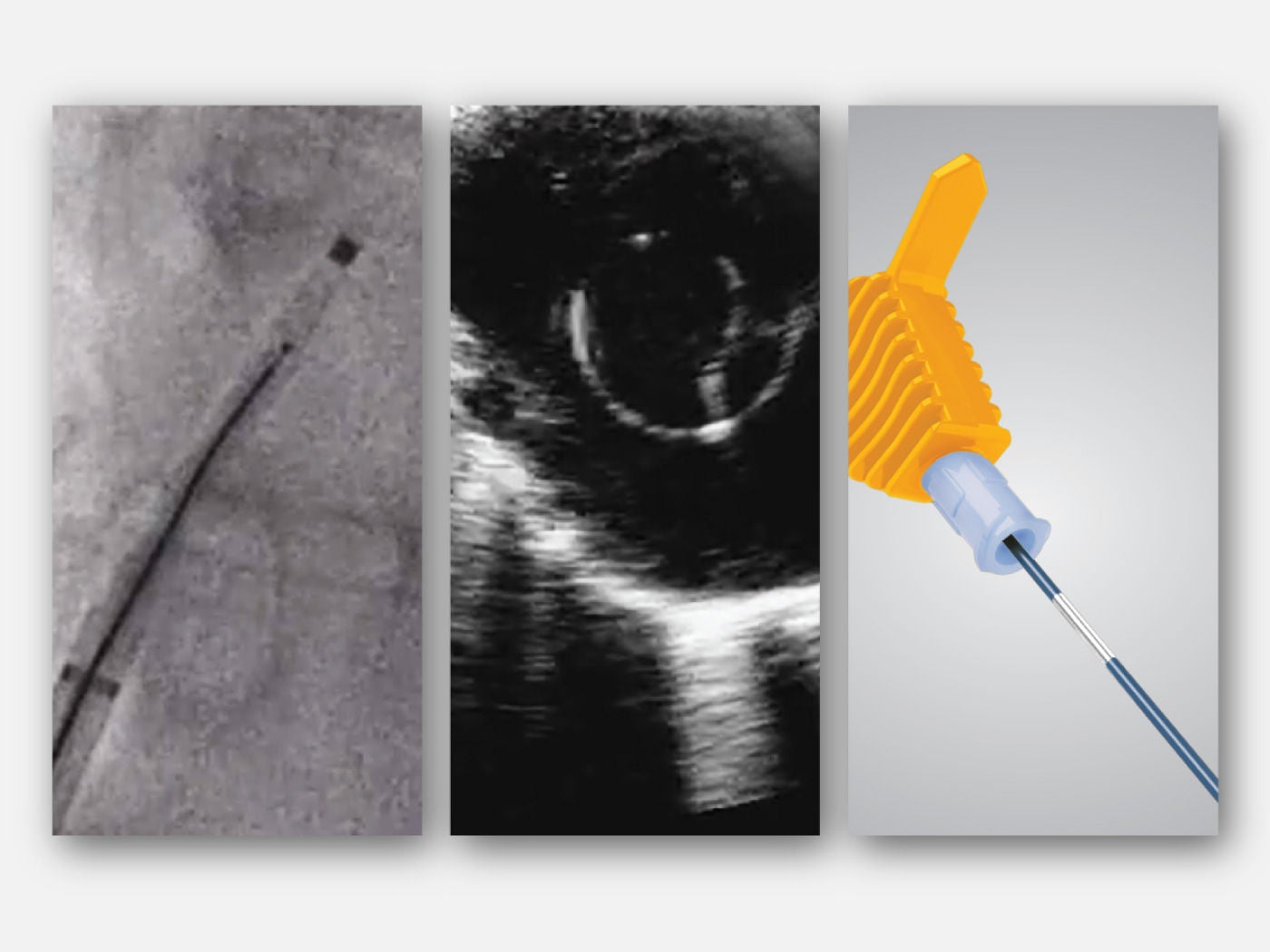

Know where you are at all times with OMNIviz™ technology
Reliably locate the VersaCross Connect solution on fluoroscopy and ultrasound. Positional markers indicate position of radiofrequency (RF) tip within dilator. Connect to DuoMode™ Cable to track and mark RF tip on mapping system.
![Fluoroscopic image of RF wire in sheath/dilator assembly.](/content/experience-fragments/ewp/corporate/na/us/en/healthcare-professionals/products/ep/fp00000399/master/_jcr_content/root/container/tabs/item_1702581500499_c/container_copy/container_copy_copy/image.coreimg.jpeg/1709941052852/illustration-diagnosticimage-versacross-connect-for-faradrive-omniviz-technology-1400x1050.jpeg)
What’s included
The VersaCross Connect Access Solution for FARADRIVE includes:
- VersaCross RF Wire (j-tip or pigtail)

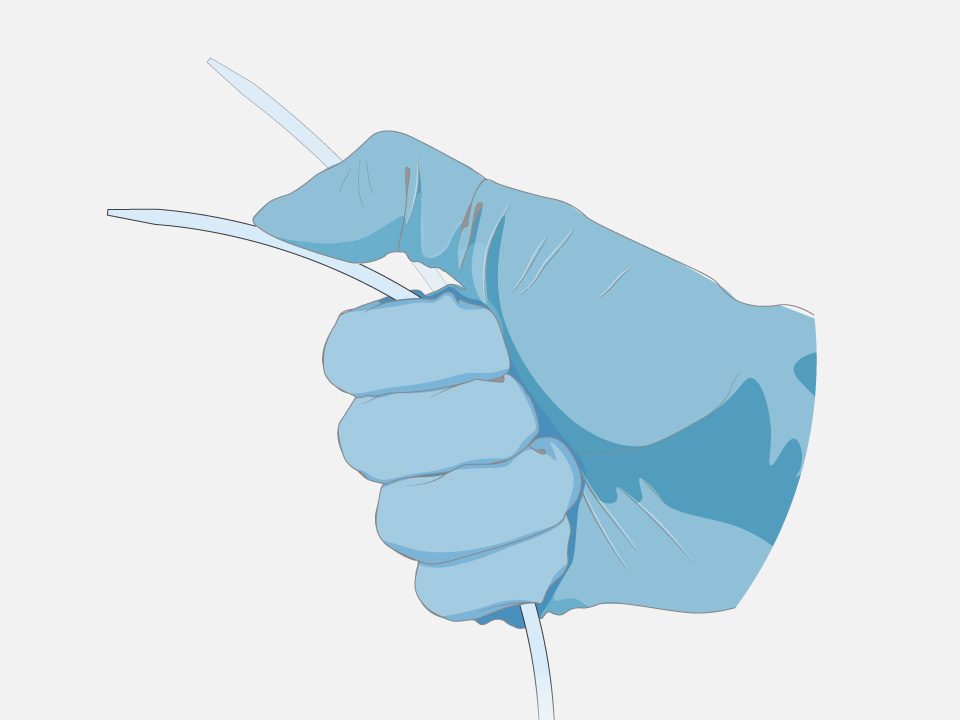

- VersaCross Connect Transseptal Dilator (13F) with TRUform technology
- Single-use RFP-100A Connector Cable
Required product

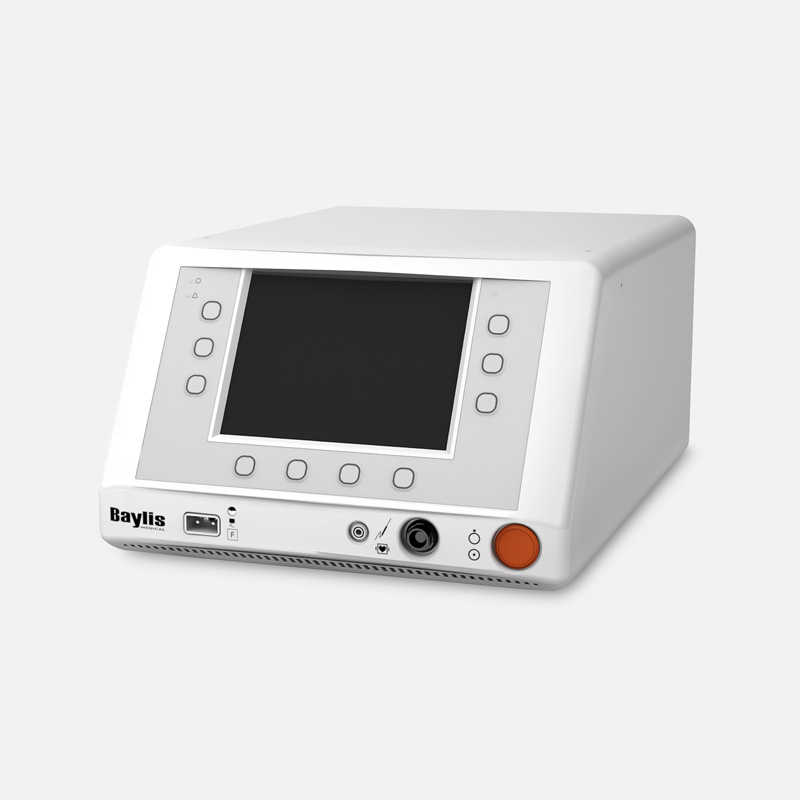

![RFP-100A RF Puncture Generator.](/content/experience-fragments/ewp/corporate/na/us/en/healthcare-professionals/products/ep/fp00000399/master/_jcr_content/root/container/tabs/item_1702581500499_c/image_1648108885_cop.coreimg.jpeg/1699310096834/photo-equipment-rfp-100a-rf-puncture-generator-800x800.jpeg)
Designed for controlled tissue puncture using radiofrequency energy
VersaCross RF Wire
Feature | Specifications |
Tip configurations | J-tip, pigtail |
Curve shape | 9 mm (j-tip), 24 mm (pigtail) |
Wire diameter | 0.035" |
Overall length | 180 cm |
VersaCross Connect Transseptal Dilator
Feature | Specifications |
Outer diameter | 13F (4.31 mm) |
Inner diameter | 0.035" |
Usable length | 93 cm |
Curve | D1 |
Sheath compatibility
The VersaCross Connect Transseptal Dilator is for use with a 13F ID FARADRIVE Steerable Sheath which is 74 cm in length, specifically, model: M004PF21M402 (USA).
Ordering information
1. Choose your VersaCross RF Wire |
J-tip, pigtail

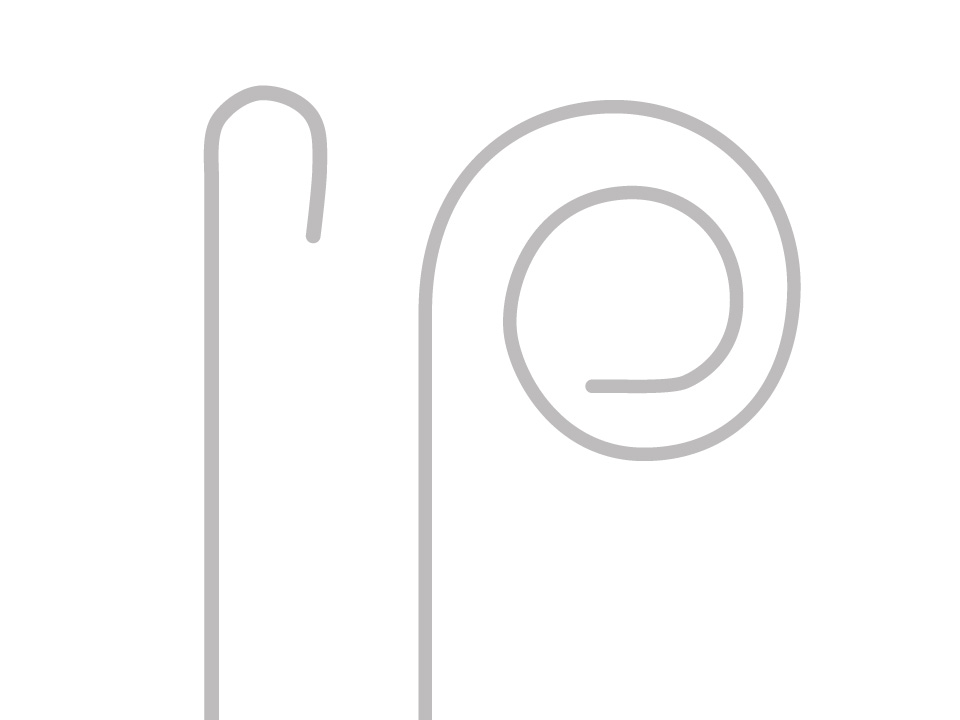

![VersaCross RF Wire in j-tip and pigtail configurations.](/content/experience-fragments/ewp/corporate/na/us/en/healthcare-professionals/products/ep/fp00000399/master/_jcr_content/root/container/tabs/item_1699289652270_c/container_1666034355_805324618/image.coreimg.jpeg/1710171434857/illustration-equipment-versacross-access-solution-wire-options-960x720.jpeg)
VersaCross RF Wire |
RF wire length: 180 cm |
Wire diameter: 0.035" |
Curve diameter: 9 mm (j-tip), 24 mm (pigtail) |
2. Connect with VersaCross Connect Transseptal Dilator |

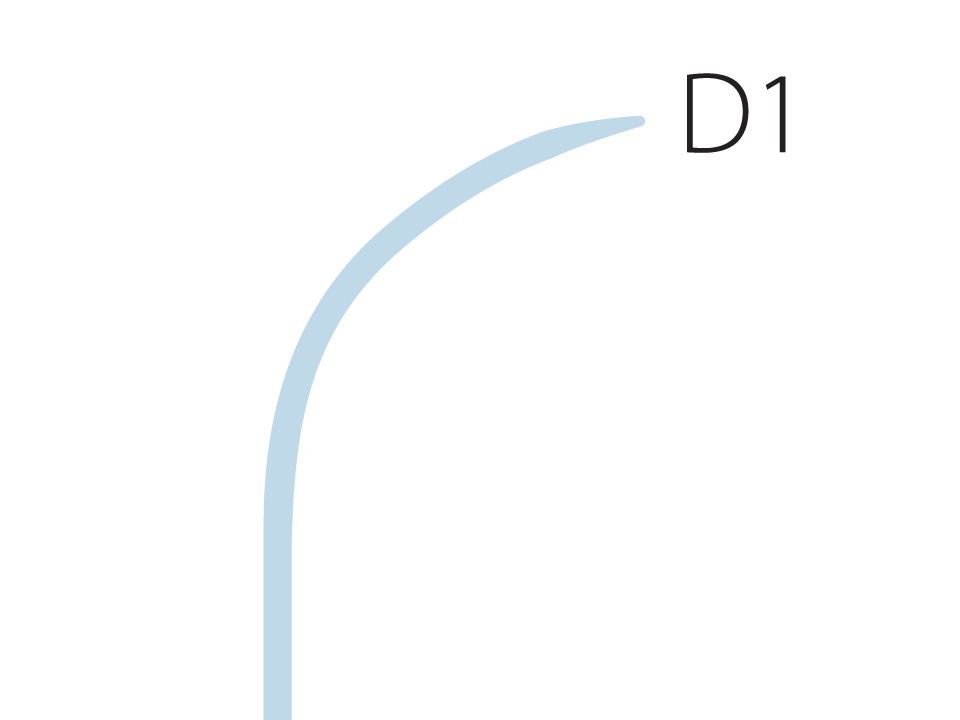

![VersaCross Connect Transseptal Dilator with TRUform shapeable technology](/content/experience-fragments/ewp/corporate/na/us/en/healthcare-professionals/products/ep/fp00000399/master/_jcr_content/root/container/tabs/item_1699289652270_c/container_1666034355_603717285/image.coreimg.jpeg/1709923003396/illustration-equipment-versacross-connect-for-faradrive-dilator-d1-curve-960x720.jpeg)
VersaCross Connect Transseptal Dilator with TRUform shapeable technology |
Inner diameter: 0.035" |
Outer diameter: 13F |
Usable length: 93 cm |
Looking for more training? Contact our medical education team
In-person training
Explore in-person training opportunities for electrophysiologists of all experience levels.
![Surgeons in operating room.](/content/experience-fragments/ewp/corporate/na/us/en/healthcare-professionals/products/ep/fp00000399/master/_jcr_content/root/container/tabs/item_1698251014714_c/container_11989237_c/container_420342686/image.coreimg.jpeg/1699313250701/16-9-surgeons-bleached-bypass-stock.jpeg)
Online education
Online medical training and education courses
The EDUCARE online platform makes healthcare education and training more relevant, more comprehensive, more personal, and more accessible. Register to access a library of procedural videos, case studies, training resources, and events.
Order guide
Brochure
Analysis
All trademarks are the property of their respective owners.
* The VersaCross Connect Transseptal Dilator is for use with a 13F ID FARADRIVE Steerable Sheath that is 74 cm in length, specifically, model: M004PF21M402 (US).
† Baylis Medical Company Radiofrequency Puncture Generator RFP-100A
