Epic™ Vascular Self-Expanding Stent System

Name: Epic™ Vascular Self-Expanding Stent System - Boston Scientific
Brand: Boston Scientific

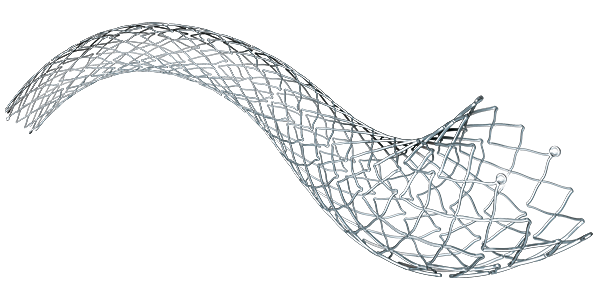

The Epic Stent is a self-expanding Nitinol stent designed to sustain vessel patency, while providing enhanced visibility and accuracy during placement.

Explore product details

Reimbursement

Coding and payment guides

Configure or select a product to continue to order

Instructions for use are found inside the product packaging and on our product literature website.

Access product literature

Need additional help with product literature?

Go to customer support

Ideal for the Iliac

Designed for an optimal balance between flexibility, radial force, deployment accuracy and fracture resistance. The size matrix provides versatility without compromise.

Epic Stent System is designed for flexibility, deliverability and visibility

Exceptional Flexibility

Tandem Architecture™ Stent Design features Macro™, Medium and Micro™ Struts, as well as patented connector patterns—designed to optimize flexibility
Hybrid Architecture Design with open- and closed-cell geometry engineered to provide flexibility and deployment uniformity

Balanced Radial Force

Macro and Micro Struts are engineered to work in tandem for balanced force—even in tortuous vasculature

Excellent Deployment Accuracy

Ergonomic handle with two convenient deployment options: thumb wheel and pull grip
Radiopaque stent markers and catheter shaft marker band enhance visibility and simplify placement

Fracture Resistance

Meticulous surface finishing and polishing to remove imperfections and improve fracture resistance
Tandem Architecture Stent Design engineered to bend and flex and reduce the risk of fracture
High-grade Nitinol tubing

Featured clinical data

ORION US IDE Clinical Trial

A Boston Scientific Study of the Epic Self-Expanding Nitonol Stent System in the treatment of Atherosclerotic Lesions in Iliac Arteries.
To demonstrate similar patency across all TASC classifications.

3 year results

0 amputations at 3 years (106 subjects)

89.9% freedom from TLR at 3 years (143 lesions)

Composite Success Rates

100% Technical Success
(Per lesion) (166/166)

99.2% Procedural Success
(Per subject) (124/125)

95.3% Late Clinical Success at 12 months
(Per subject) (101/106)

12-month Primary Patency by TASC Classification

Lesions at risk	All	163.5	155	153	152.5	132
	A/B	132.5	124	123	122.5	104
	C/D	27	27	26	26	25

12-month data

0% MI at 30 days (0/111)
3.4% MAE at 9-months (4/117)
0% MI in-hospital (0/111)
5.4% TVR at 12-months (6/111)
0% Amputation of index limb at 12-months (0/111)

Epic Self-Expanding Nitonol Stent System

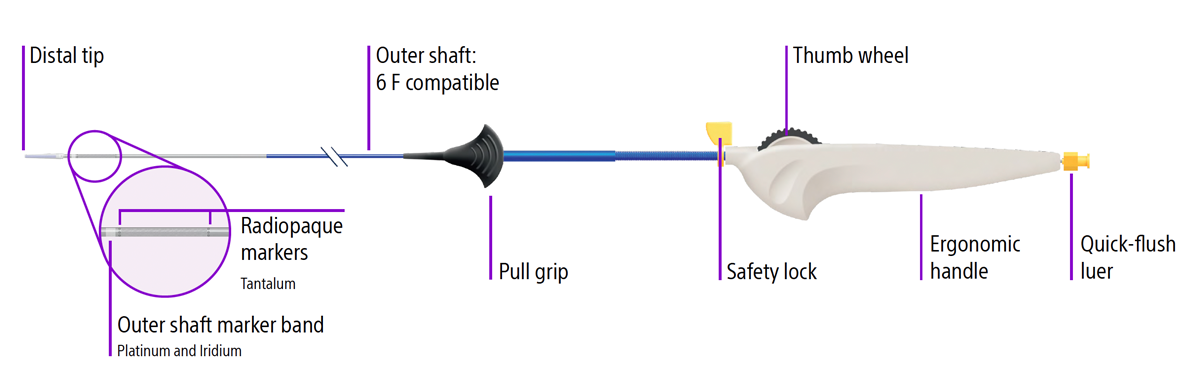

Epic™ Vascular Self-Expanding Stent System schematic.

The Epic Stent System design features:

Robust catheter
6F compatibile outer shaft
Ergonomic handle
Quick-flush luer

Stent Diameters (mm)	6 to 12
Stent Lengths (mm)	20, 30, 40, 60, 80, 100, 120
Catheter Lengths (cm)	75, 120
Guide Wire System	0.035" OTW
Introducer Sheath Compatibility	6 F across all sizes
Catheter Nominal O.D.	0.079" to 0.077" (distal to proximal)

		Length (mm)
		20	30	40	60	80	100	120
Diameter (mm)	6	X	X	X	X	X	X	X
	7	X	X	X	X	X	X	X
	8	X	X	X	X	X	X	X
	9	X	X	X	X	X	X
	10	X	X	X	X	X	X
	12		X	X	X

Catheter lengths: 75 cm, 120 cm; Guidewire system: 0.035" OTW

Ordering information

75 cm Catheter Working Length

UPN/Order Code	Catalog No.	GTIN	Unconstrained Stent Diameter (mm)	Unconstrained Stent Length (mm)	Sheath Compatibility (F)	Catheter Working Length (cm)	Indications	C-Code
H74939200062070	39200-06207	8714729805250	6	20	6	75	4	C1876
H74939200063070	39200-06307	8714729805274	6	30	6	75	4	C1876
H74939200064070	39200-06407	8714729805298	6	40	6	75	4	C1876
H74939200066070	39200-06607	8714729805335	6	60	6	75	4	C1876
H74939200068070	39200-06807	8714729805373	6	80	6	75	4	C1876
H74939200061070	39200-06107	8714729805212	6	100	6	75	4	C1876
H74939200061270	39200-06127	8714729805236	6	120	6	75	4	C1876
H74939200072070	39200-07207	8714729805410	7	20	6	75	4	C1876
H74939200073070	39200-07307	8714729805434	7	30	6	75	4	C1876
H74939200074070	39200-07407	8714729805458	7	40	6	75	4	C1876
H74939200076070	39200-07607	8714729805496	7	60	6	75	4	C1876
H74939200078070	39200-07807	8714729805533	7	80	6	75	4	C1876
H74939200071070	39200-07107	8714729805557	7	100	6	75	4	C1876
H74939200071270	39200-07127	8714729805397	7	120	6	75	4	C1876
H74939200082070	39200-08207	8714729805618	8	20	6	75	4	C1876
H74939200083070	39200-08307	8714729805632	8	30	6	75	4	C1876
H74939200084070	39200-08407	8714729805656	8	40	6	75	4	C1876
H74939200086070	39200-08607	8714729805694	8	60	6	75	4	C1876
H74939200088070	39200-08807	8714729805731	8	80	6	75	4	C1876
H74939200081070	39200-08107	8714729805571	8	100	6	75	4	C1876
H74939200081270	39200-08127	8714729805595	8	120	6	75	4	C1876
H74939200092070	39200-09207	8714729805755	9	20	6	75	4	C1876
H74939200093070	39200-09307	8714729805779	9	30	6	75	4	C1876
H74939200094070	39200-09407	8714729805793	9	40	6	75	4	C1876
H74939200096070	39200-09607	8714729805830	9	60	6	75	4	C1876
H74939200098070	39200-09807	8714729805878	9	80	6	75	4	C1876
H74939200091070	39200-09107	8714729805892	9	100	6	75	4	C1876
H74939200102070	39200-10207	8714729804970	10	20	6	75	4	C1876
H74939200103070	39200-10307	8714729804994	10	30	6	75	4	C1876
H74939200104070	39200-10407	8714729805014	10	40	6	75	4	C1876
H74939200106070	39200-10607	8714729805052	10	60	6	75	4	C1876
H74939200108070	39200-10807	8714729805090	10	80	6	75	4	C1876
H74939200101070	39200-10107	8714729805113	10	100	6	75	4	C1876
H74939200123070	39200-12307	8714729805137	12	30	6	75	4	C1876
H74939200124070	39200-12407	8714729805151	12	40	6	75	4	C1876
H74939200126070	39200-12607	8714729805199	12	60	6	75	4	C1876

C-Code

The C-code used for this product is C1876, Stent, non-coated/non-covered with delivery system. C-codes are used for hospital outpatient device reporting for Medicare and some private payers.

Note: Boston Scientific is not responsible for the correct use of codes on submitted claims; this information does not constitute reimbursement or legal advice.

Online medical training and education courses

The EDUCARE online platform makes healthcare education and training more relevant, more comprehensive, more personal, and more accessible. Register to access a library of procedural videos, case studies, training resources, and events.
