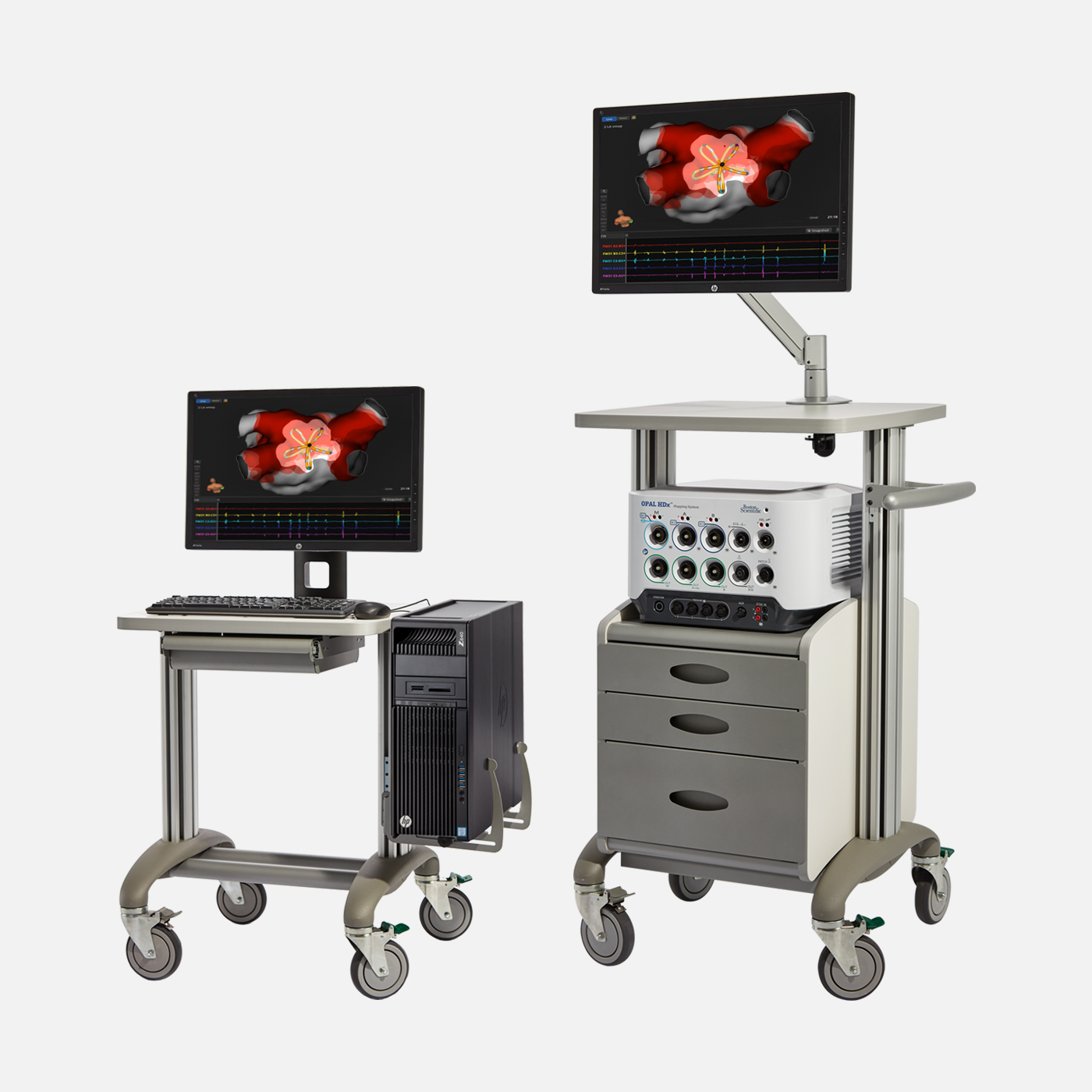

Opal HDX mapping system cart and monitors, one showing a PFA cardiac map and the other a HD cardiac map for RF.

OPAL HDx™ Mapping System

OPAL HDx provides integrated mapping for both RF and pulsed field ablation procedures while giving enhanced access to the transformational capabilities of the FARAPULSE™ Pulsed Field Ablation System. Offering a complete range of mapping solutions, OPAL HDx allows you to choose the treatment modality that best meets your case needs.

Boston Scientific welcomes our RHYTHMIA HDx™ customers to the OPAL HDx Mapping System, a full-spectrum mapping experience at the leading edge of PFA.

Reimbursement

Coding and Payment Guides

Configure or select a product to continue to order

Explore training on EDUCARE
Receive product updates

Full-spectrum cardiac mapping

The OPAL HDx™ Mapping System enables visualization of the catheter during FARAPULSE™ Pulsed Field Ablation System procedures in the treatment of atrial fibrillation. The OPAL HDx system also provides ultra-HD cardiac mapping in support of conventional ablation procedures and integration with our portfolio of RF catheters.

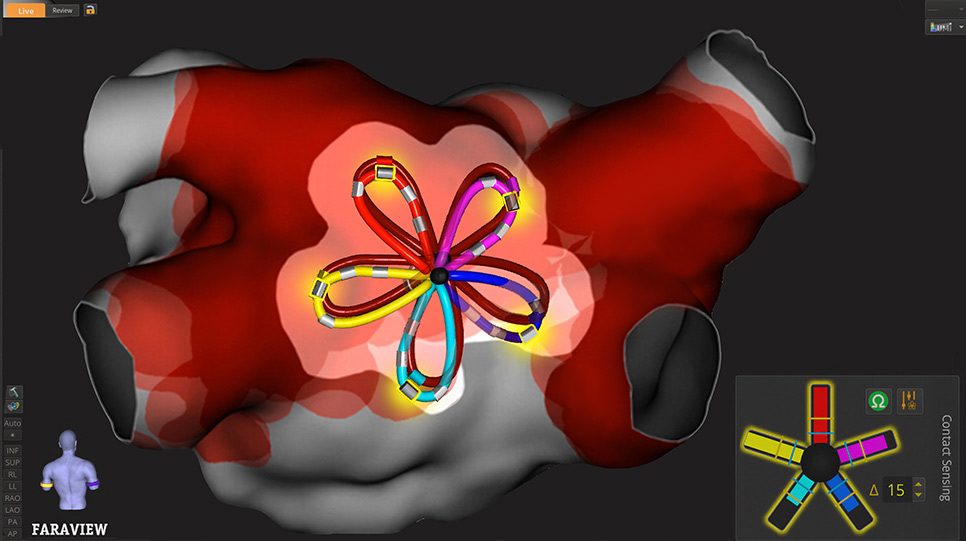

Computer monitor displaying Faraview cardiac map with PFA catheter in foreground

Integrated cardiac mapping for FARAPULSE™ PFA workflows

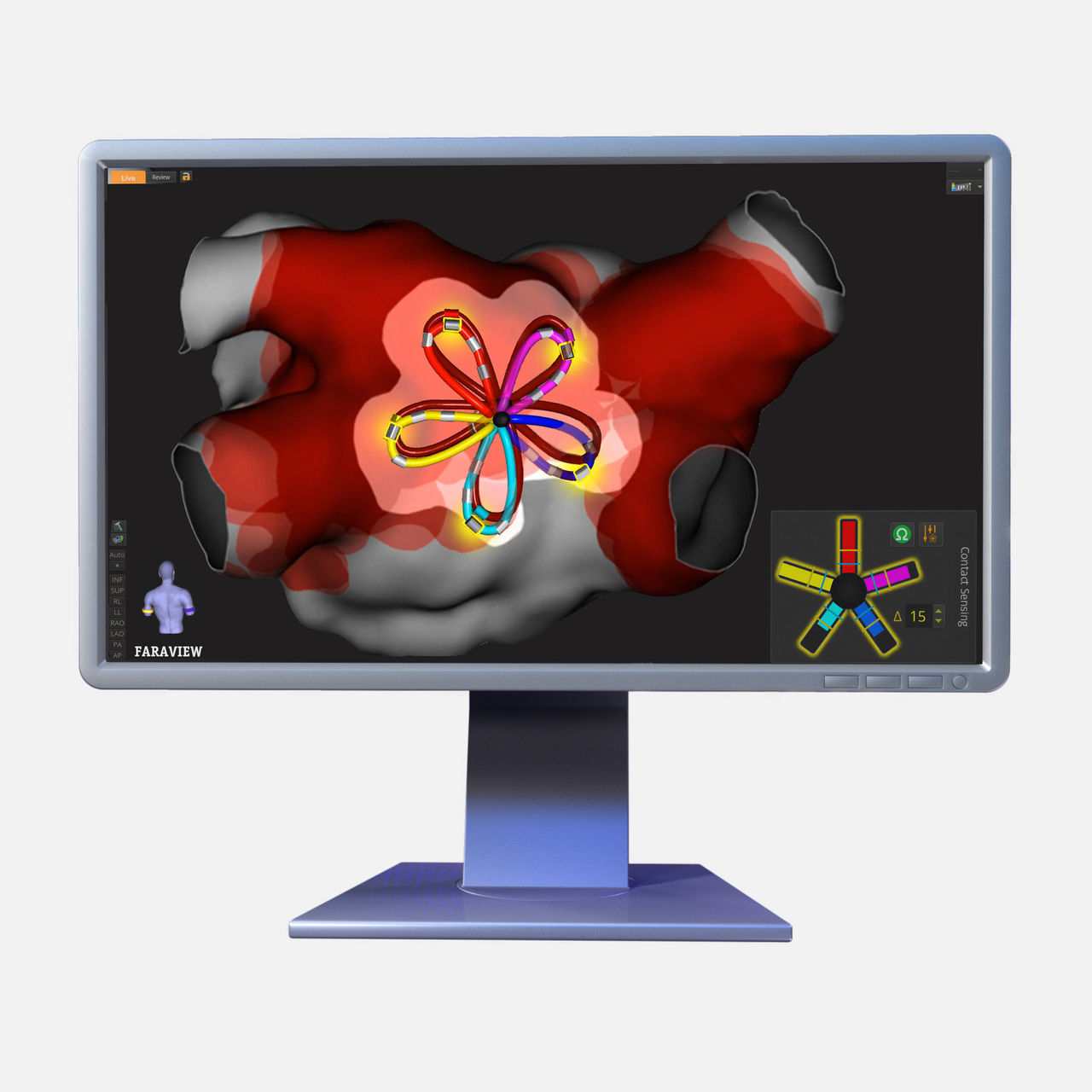

The FARAVIEW™ Software Module will let operators visualize and confirm pulsed field applications while unlocking workflow simplicity. The FARAVIEW Software Module is available only on the OPAL HDx Mapping System, and fully integrates with the FARAPULSE PFA system using the FARAWAVE™ NAV PFA catheter.

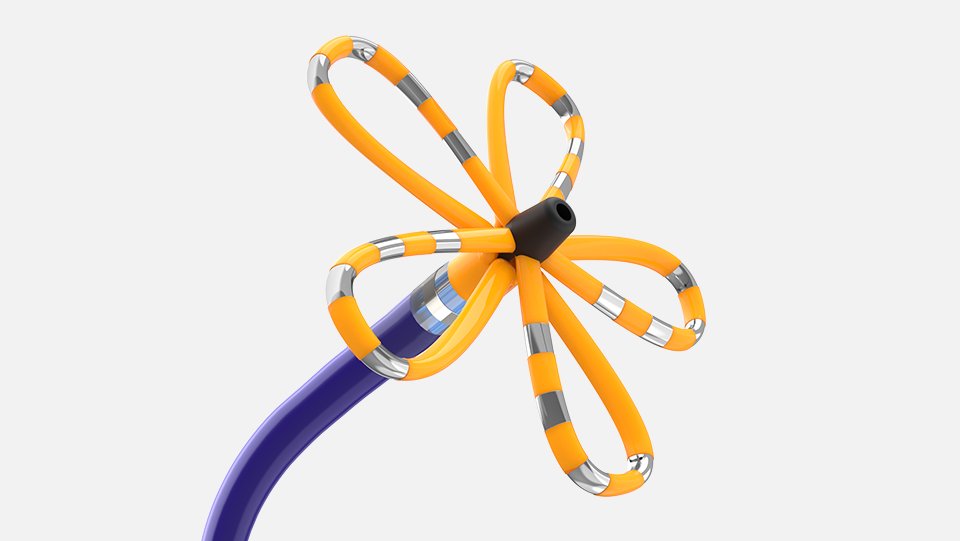

Tip of Farawave Nav Pulsed Field Ablation Catheter

Conventional mapping

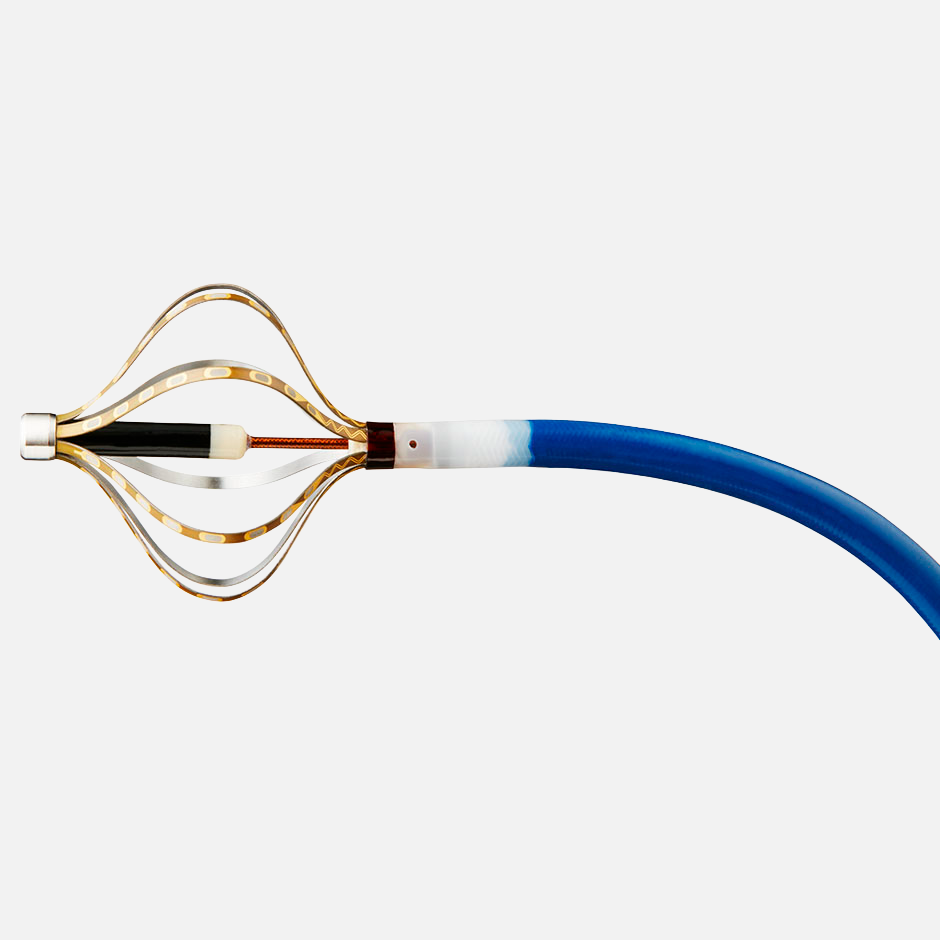

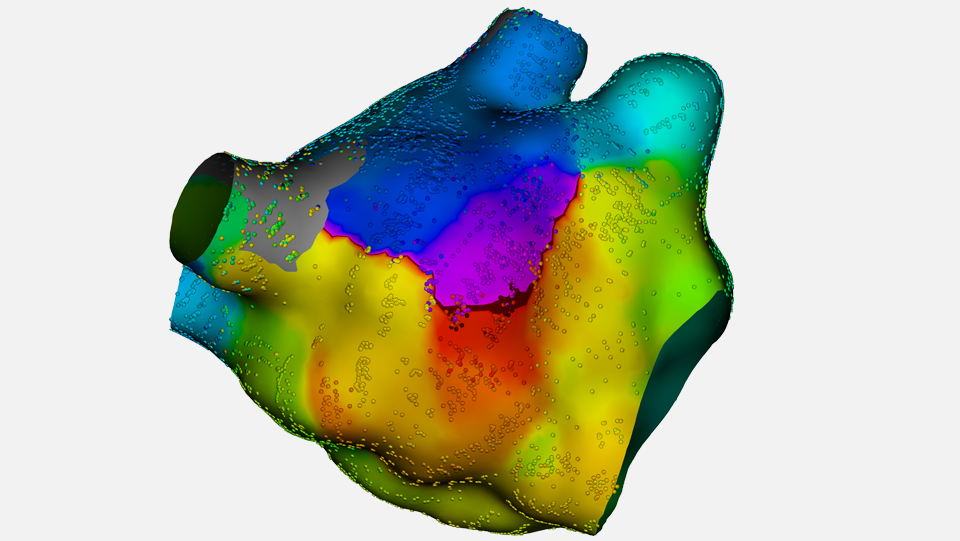

Combining advanced signal-processing hardware, high-volume data-processing algorithms and rapid analysis software with the high-fidelity EGM capture of the INTELLAMAP ORION™ Mapping Catheter, OPAL HDx provides unparalleled HD cardiac mapping in conventional cardiac ablation procedures.

FARAVIEW™ Software Module

A transformative solution for PFA. Learn more about the cardiac mapping solution for FARAPULSE Pulsed Field Ablation System.

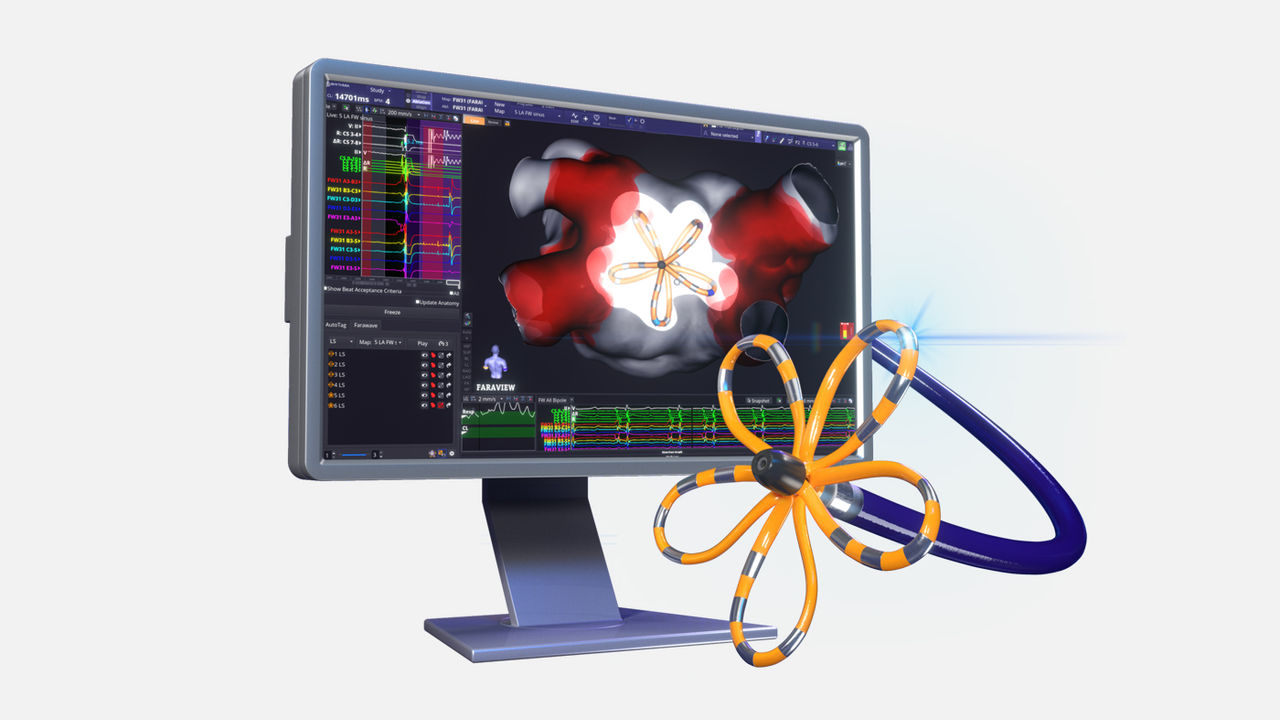

Faraview software module

The mapping solution for the FARAPULSE Pulsed Field Ablation System

The FARAVIEW Software Module on the OPAL HDx system gives physicians enhanced ability to visualize pulsed field ablations.

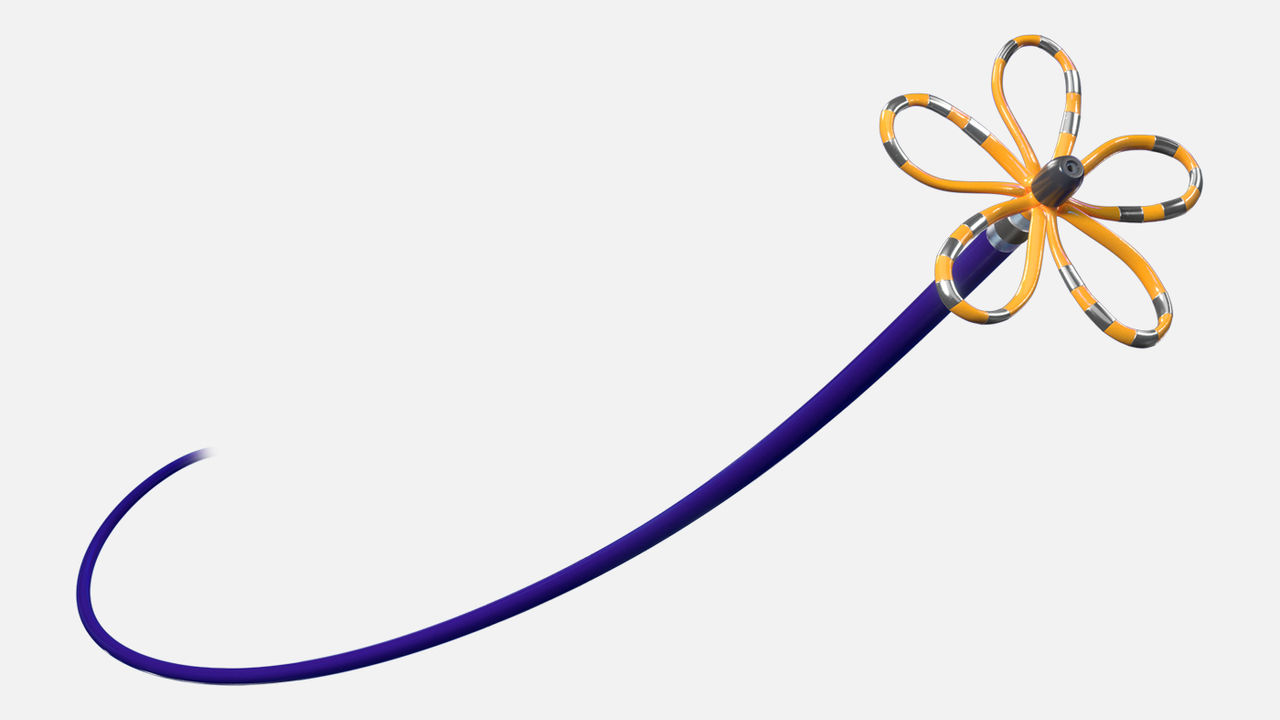

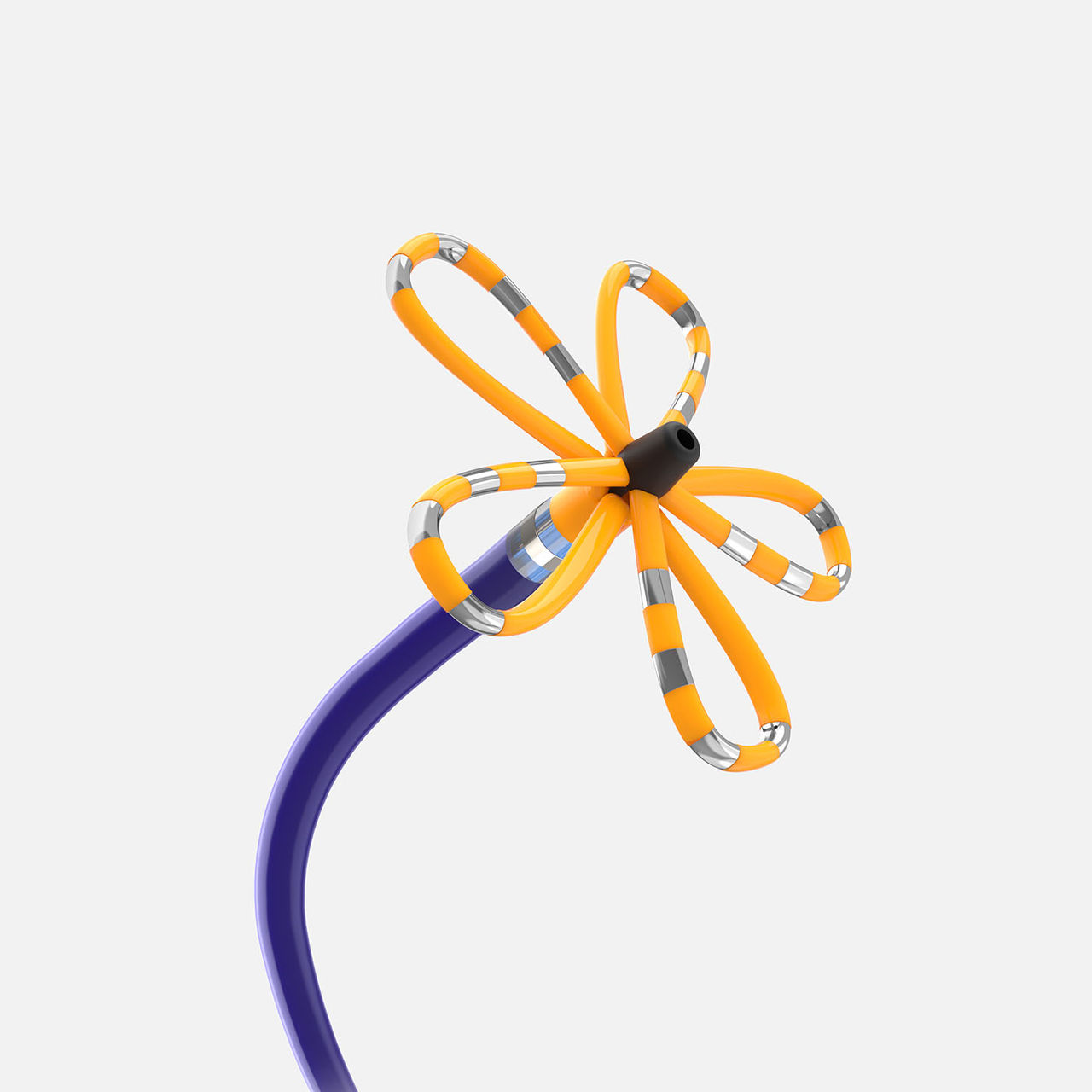

Tip of Farawave Nav Pulsed Field Ablation Catheter

Single-catheter solution

Map and ablate with a single magnetically tracked PFA catheter. The FARAWAVE NAV Pulsed Field Ablation Catheter is designed to minimize catheter exchanges.

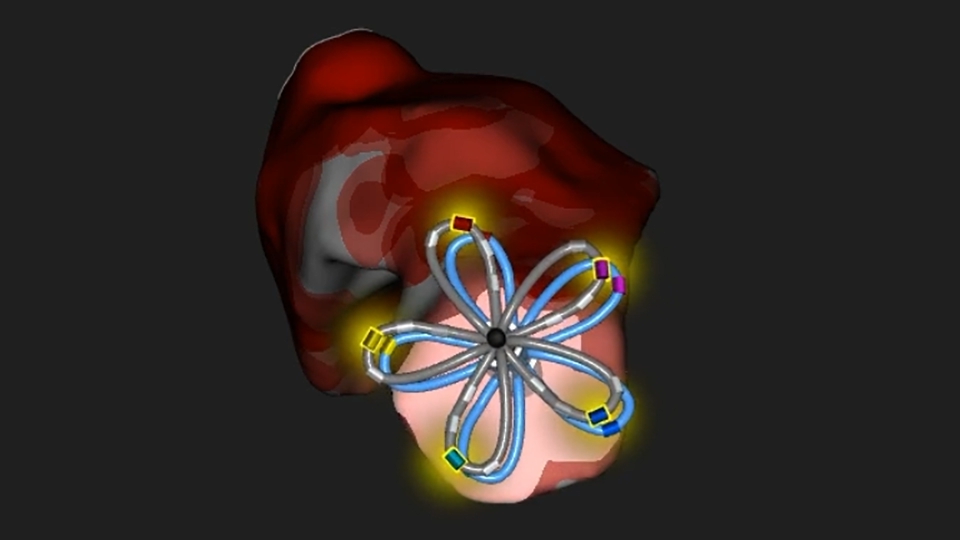

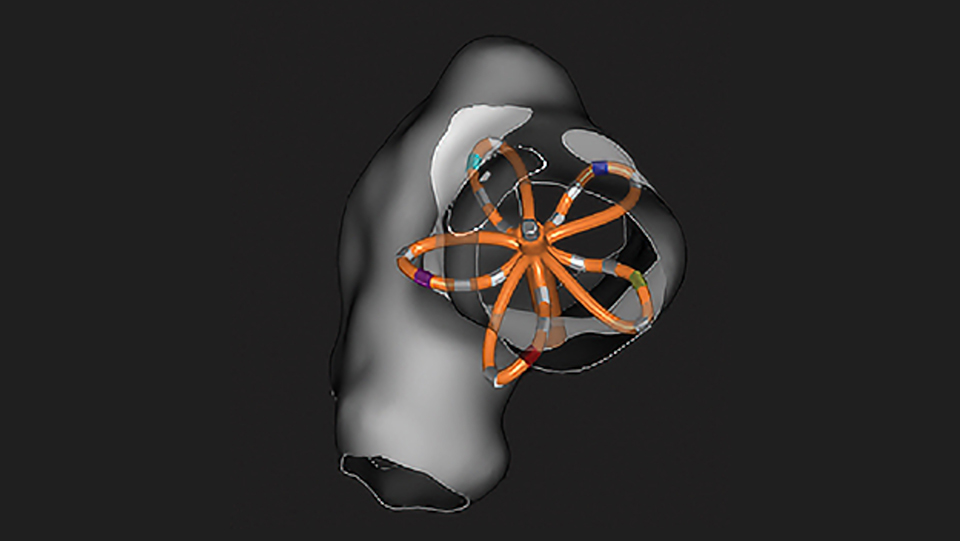

Faraview cardiac map showing PFA catheter in vein

Dynamic visualization

Visualize pulsed field delivery and fine-tune your ablation strategy by visualizing catheter shape, rotation, and transitions in real-time.

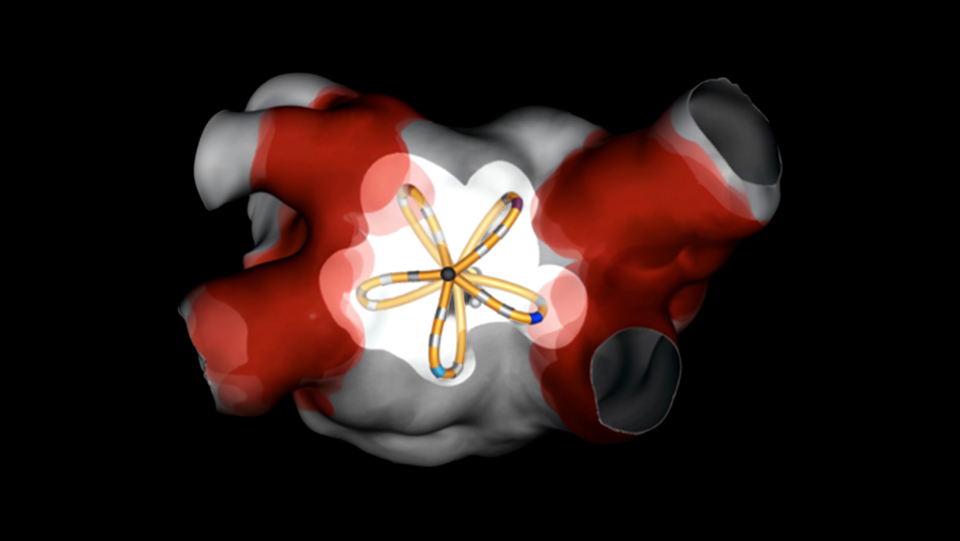

Deep red field tags in cardiac map image show areas in the vein of overlapping pulsed field ablation.

Automated pulse field tagging

Evaluate field volume, see the intersection of field with anatomy, and automatically tag areas where PFA is detected.

Conventional HD mapping and RF capabilities

Built off of the RHYTHMIA HDx cardiac mapping system, the OPAL HDx mapping toolset captures and annotates high-fidelity EGM signals, providing a more complete understanding of the electrical circuit.

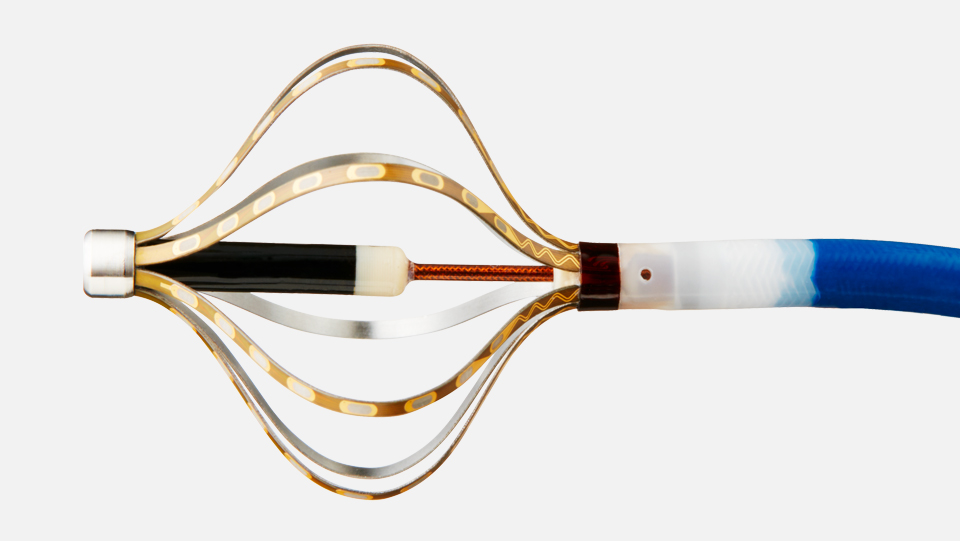

The tip of the eight-spline Intellanav Orion cardiac mapping catheter with catheter electrodes displayed

Precise localization of even the most complex arrhythmias

The multi-spline design and small electrodes of the INTELLANAV ORION™ Mapping Catheter support greater EGM signal capture and map resolution. The catheter’s small 0.4 sq mm flat electrodes offer improved near-field signal quality. The catheter provides 180-degree maneuverability and 28 mm range.

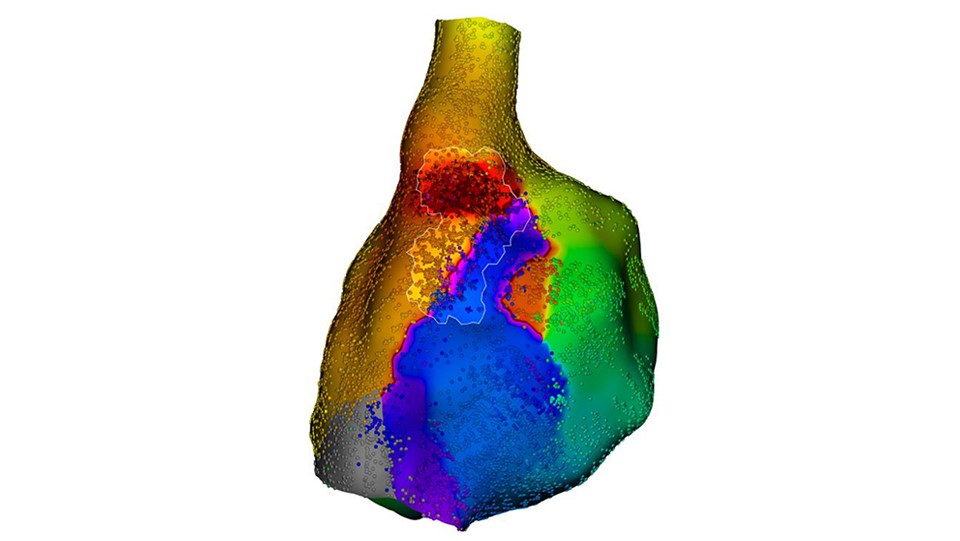

lumipoint skyline

Rapid identification of areas of clinical interest

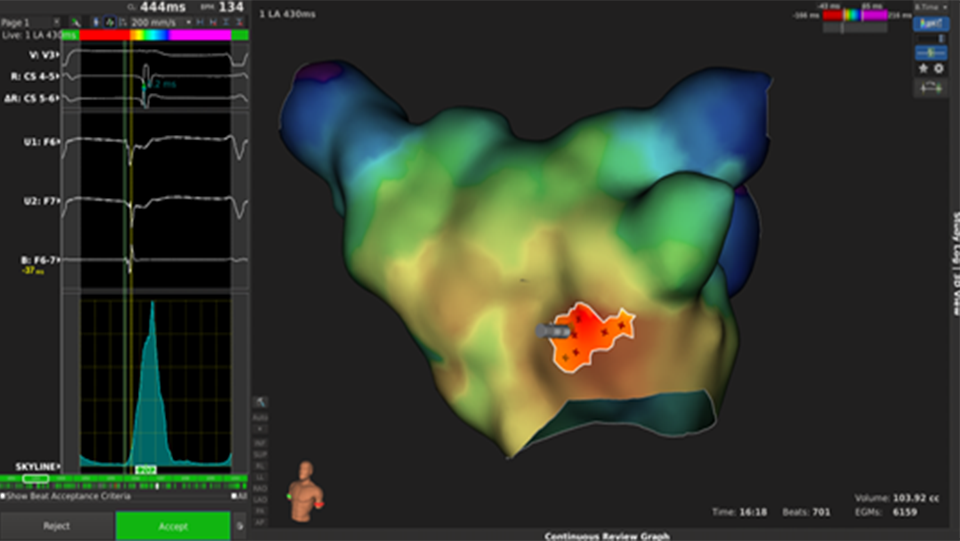

Continuous mapping employs four Beat Triggers and seven Beat Acceptance Criteria to ensure that only beats from the rhythm of interest are captured. With the system’s LUMIPOINT™ Software Module, physicians can classify EGMs by zone of activation and across cycle length, use rapid late potential reannotation, and pinpoint potential critical isthmuses.

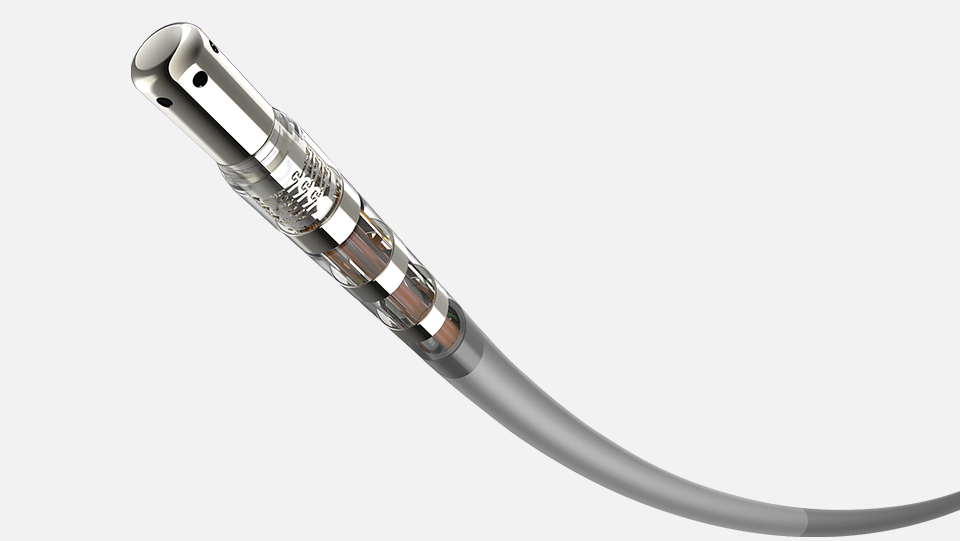

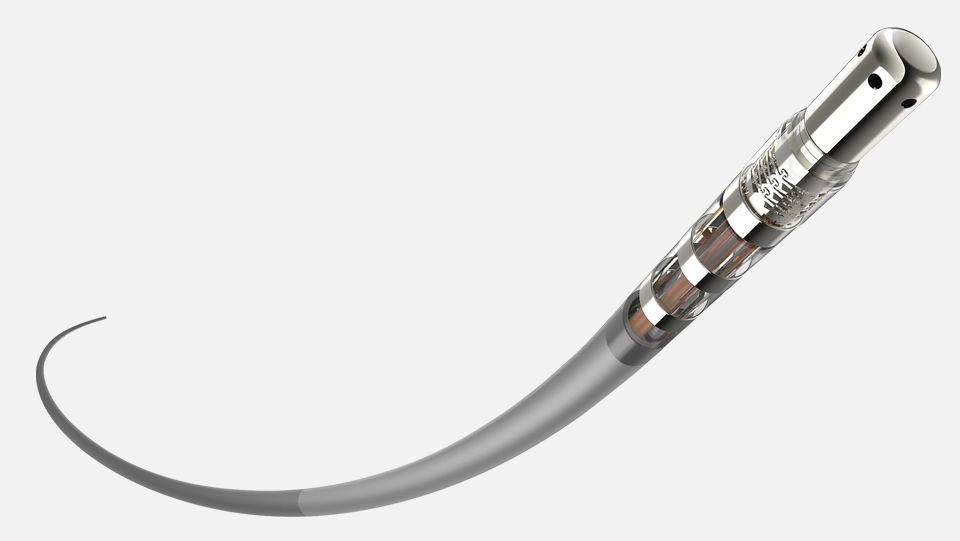

Stablepoint catheter tip

Enhanced RF ablation delivery with advanced contact force catheters

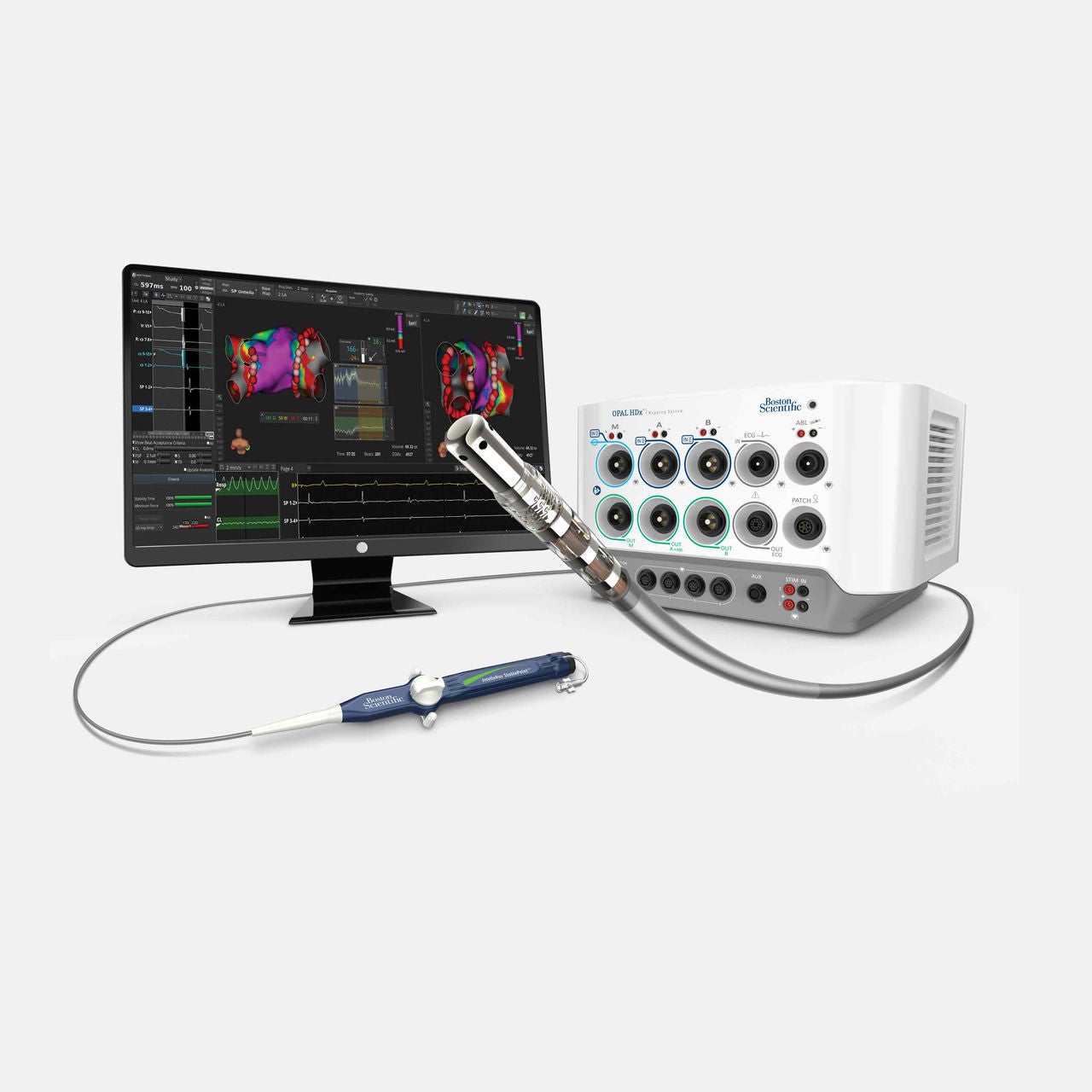

Compatible with the OPAL HDx Mapping System, the INTELLANAV STABLEPOINT™ Ablation Catheter combines the power of contact force and local impedance to give you dynamic insights at and below the cardiac tissue surface. Learn more.

Review the full portfolio of compatible ablation catheters.

OPAL HDx™ Mapping System



FeatureSpecifications
Signal StationDimensions (W x D x H):
41.0 x 38.9 x 26.2 (centimeter)
16.2 x 15.3 x 10.3 (inches)
Workstation PCDimensions Z-series (W x D x H):
17.1 x 47.3 x 44.3 (centimeter)
6.8 x 18.7 x 17.5 (inches)
Monitor
Display size: 24"		Dimensions (W xD x H):
56.2 x 6.1 x 36.8 (centimeter)
22.1 x 2.4 x 14.5 (inches)
Localization GeneratorDimensions (W x D x H):
45.0 x 55.4 x 7.0 (centimeter)
17.8 x 21.9 x 2.8 (inches)
System Cart

Dimensions (W x D x H) without monitor:
71.2 x 57.2 x 109.3 (centimeter)
28.0 x 22.5 x 43.0 (inches)

Dimensions (W x D x H) with monitor:
71.2 x 57.2 x 177.9 (centimeter)
28.0 x 22.5 x 70.0 (inches)

Workstation PC Cart
Holds the Workstation, monitor, keyboard and mouse		Dimensions (W x D x H) with monitor:
71.2 x 57.2 x 147.4 (centimeter)
28.0 x 22.5 x 58.0 (inches)

Ordering information



UPN DescriptionUPN#GTIN#
OPAL HDx Mapping Sys Install Bundle 2 ENM004OPLINSTALL2EN000191506055370
OPAL HDx Signal Station 2M004OPAL1020000191506055325
OPAL HDx WORKSTATION PCM004OPAL4010000191506055301

Reimbursement information

Locate procedural coding and reimbursement information for inpatient, outpatient, office, and ASC settings on our reimbursement page. You’ll also find coding and payment guides for cardiac rhythm management and electrophysiology.

Review the page

Customer support plans

The ExpertCare Program includes tailored plans offering 24-hour technical assistance and expert collaboration in support of Boston Scientific electrophysiology systems.

Learn more

Online education

Explore all cardiac mapping educational content
Explore all FARAPULSE educational content

Online medical training and education courses

The EDUCARE online platform makes healthcare education and training more relevant, more comprehensive, more personal, and more accessible. Register to access a library of procedural videos, case studies, training resources, and events.

On-demand

Get 24-hour access to content from your desktop, laptop, or mobile device.

Personalized

Explore interactive videos, case studies, and more, tailored to your medical field.

Trusted

Gain education and insights from globally recognized industry experts.

ExpertCare Care

The ExpertCare Program is designed to provide you with continued confidence in Boston Scientific products, customer support and technical services. Technical support is available 24 hours a day. Our service team has the expertise that comes from years of collaboration with our customers to better support your commitment to patient care.

Request a Quote

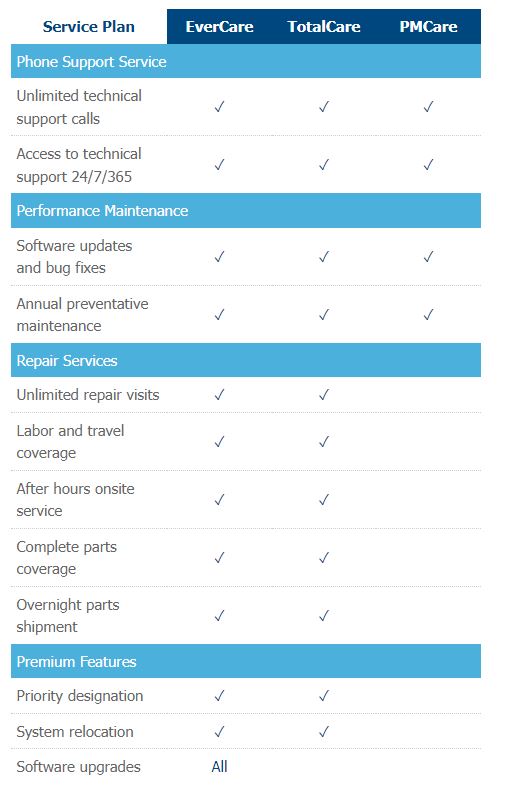

Expert Care service plan
