AngioJet™

Peripheral Thrombectomy System

ZelanteDVT deep vein thrombosis animation

AngioJet peripheral thrombectomy catheters

AngioJet ZelanteDVT Thrombectomy Catheter

AngioJet mechanical thrombectomy Power Pulse delivery

Watch ZelanteDVT deep vein thrombosis animation.

Peripheral AngioJet Catheters

DVT Treatment Options: A New Paradigm

Power Pulse™ Delivery Animation

AngioJet Thrombectomy System

The AngioJet Thrombectomy System is a pharmacomechanical peripheral thrombectomy device with active aspiration and Power Pulse™ lytic delivery designed to treat the widest range of thrombosed vessels, rapidly restoring blood flow.

Key Resources

Indications, Safety, and Warnings

Explore

Product Detail

Features & Benefits Overview

The AngioJet Thrombectomy system provides the power and flexibility for rapid thrombus removal, quick restoration of blood flow, symptom improvement and ease of use.

Active aspiration and Power Pulse lytic delivery for tough clots
Wide offering of catheters for treating arterial, venous and AV access in vessels ranging from 1.5 mm to large iliofemoral clot burdens
Compact, highly mobile console design

Catheter Specifications

Model	Indication	Delivery Platform	Minimum Vessel Diameter	Catheter Length	Catheter Diameter	Guidewire	Power Pulse™ Enabled	Guidewire Swappable	Contrast Injection Port
ZelanteDVT™	Venous	OTW	6 mm	105 cm	8 F	0.035”	Yes	Yes	Yes
Solent™ Omni	Peripheral Arterial and Venous, AV Access	OTW	3 mm	120 cm	6 F	0.035”	Yes	Yes	Yes
Solent™ Proxi	Peripheral Arterial and Venous, AV Access	OTW	3 mm	90 cm	6 F	0.035”	Yes	Yes	Yes
Solent™ Dista	Peripheral Arterial	OTW	1.5 mm	145 cm	4 F / 3 F	0.014”	Yes	N/A	N/A
AVX™	AV Access Grafts and Fistula	OTW	3 mm	50 cm	6 F	0.035”	N/A	N/A	Yes

Console Overview

Advanced, User-Friendly Console

Control system automates set-up and monitors operation
Step-by-step interface for procedural efficiency
Automated system self-configures to each catheter
Compact, highly mobile console

Technical Assistance

For technical assistance or to inquire about the purchase of a console please contact 1-800-949-6708.

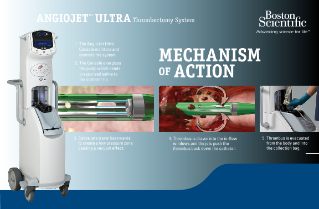

Mechanism of Action

1. The AngioJet Console monitors and controls the system.

2. The Console energizes the pump which sends pressurized saline to the catheter tip.

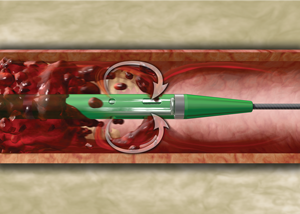

3. Saline jets travel backwards to create a low pressure zone causing a vacuum effect. (Image 1)

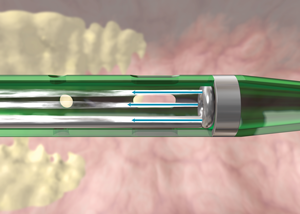

4. Thrombus is drawn into the in-flow windows and the jets push the thrombus back down the catheter. (Image 2)

5. Thrombus is evacuated from the body and into the collection bag. (Image 3)

Ordering Information

Product Name	Catalog Number	UPN
Angiojet System Console	105650	105650-001
ZelanteDVT™	114610	114610-001
Solent^™ Omni	109681	109681-001
Solent^™ Proxi	109676	109676-001
Solent^™ Dista	111303	111303-001
AVX^™	105039	105039-001
Power Pulse Delivery Kit (5 per box)	104834	104834-0021

Reimbursement Information

The C-Code used for the AngioJet Thrombectomy System is C1757. C-Codes are used for hospital outpatient device reporting for Medicare and some private payers. Note: Boston Scientific Corporation is not responsible for correct use of codes on submitted claims; this information does not constitute reimbursement or legal advice.
