OPTICROSSTM HD 60 MHz
Coronary Imaging Catheter
High Definition, Clear Results
Set a new standard for image quality, depth and deliverability with the new OPTICROSS HD 60 MHz Coronary Imaging Catheters.
Explore
Image Comparison
The OPTICROSS HD 60 MHz Imaging Catheter provides increased stent visibility with clearer resolution to confirm adequate stent apposition to vessel wall.
Product Overview
OPTICROSS™ HD
High-Resolution Imaging
A 60 MHz wideband transducer increases lateral and axial resolution for superior image quality to visualize all three vessel layers, plaque morphology, and improves stent strut visibility for better optimization.
Unmatched Versatility
Expect exceptional near-field visibility for small vessel imaging as well as penetration depth of 6mm for large vessel assessment.
Proven Deliverability
Available in 5F and 6F, catheters feature a trusted, well-balanced design to ensure best-in-class deliverability.
Product Specifications
| OPTICROSS HD | OPTICROSS | OPTICROSS 6 |
|---|---|---|---|
Typical Use | Coronary | Coronary | Coronary |
Transducer Frequency | 60 MHz | 40 MHz | 40 MHz |
Maximum Diameter Penetration | 6 mm | 6 mm | 6 mm |
Sheath Compatibility (with max wire) | 5F | 5F | 6F |
Guide Catheter Compatibility | 5F (ID ≥ 0.058") | 5F (ID ≥ 0.058") | 6F (ID ≥ 0.064") |
Guidewire Lumen Length | 16 mm | 16 mm | 16 mm |
Guidewire Compatibility | ≤ 0.014" | ≤ 0.014" | ≤ 0.014" |
Entry Profile | 0.026" | 0.026" | 0.017" |
Imaging Window Profile | 2.6F | 2.6F | 2.9F |
Crossing Profile | 3.1F | 3.1F | 3.1F |
Prep Location | Proximal | Proximal | Proximal |
Catheter Telescoping Length | 150 mm | 150 mm | 150 mm |
Sled Pullback Length | 100 mm | 100 mm | 100 mm |
Tip to Transducer Distance | 20 mm | 20 mm | 20 mm |
Distal Marker to Transducer | 15 mm | 15 mm | 15 mm |
Working Length | 135 mm | 135 mm | 135 mm |
Hydrophilic Coating | Bio-SlideTM | Bio-SlideTM | Z-GlideTM |
Integration Options
Ordering Information
Ref/Catalog Number | Description |
| H74939352020 | OPTICROSS™ HD 60 MHz Coronary Imaging Catheter |
| H749A70200 | Automatic Pullback Sled |

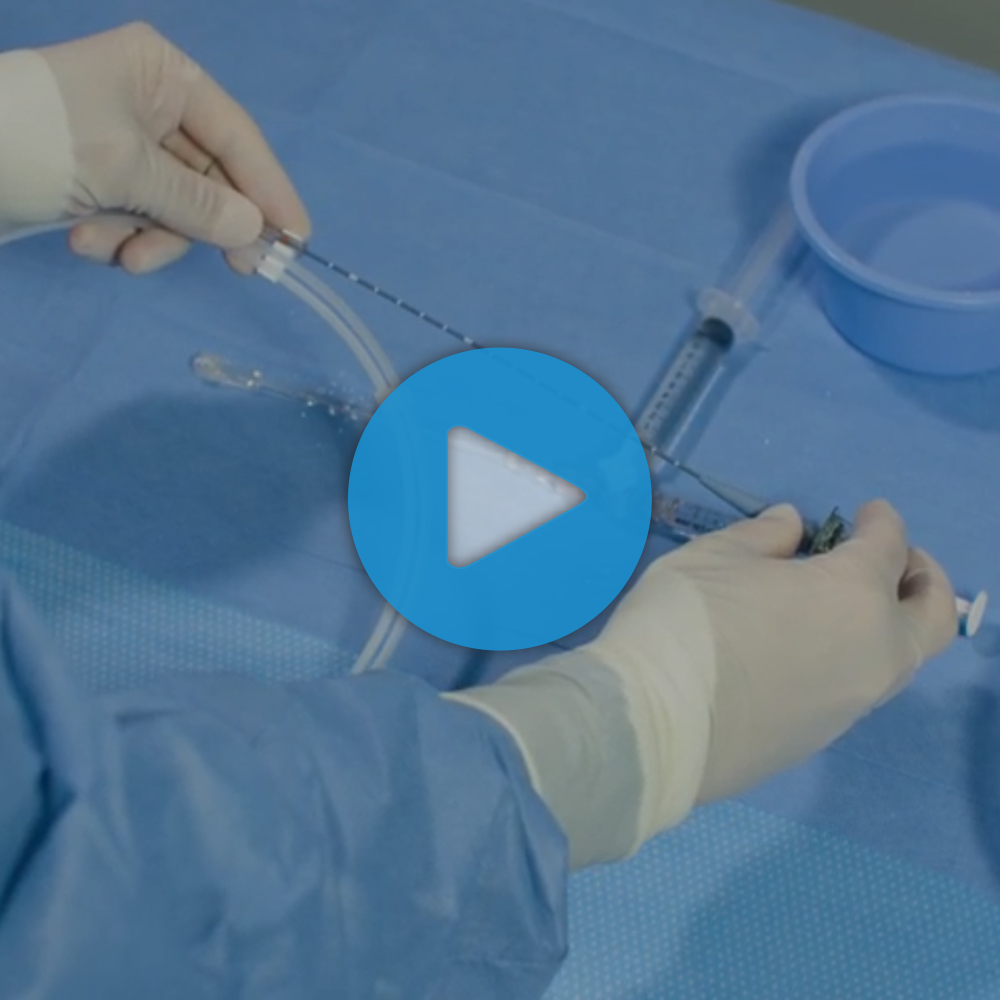

OPTICROSS Imaging Catheters Preparation Instructions
Watch to learn how to prepare the OPTICROSS Imaging Catheters step by step.
